MAX16930EVKIT#
EVKIT FOR MAX16930 - 2MHZ, 36V,Manufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Quality Control: Learn More

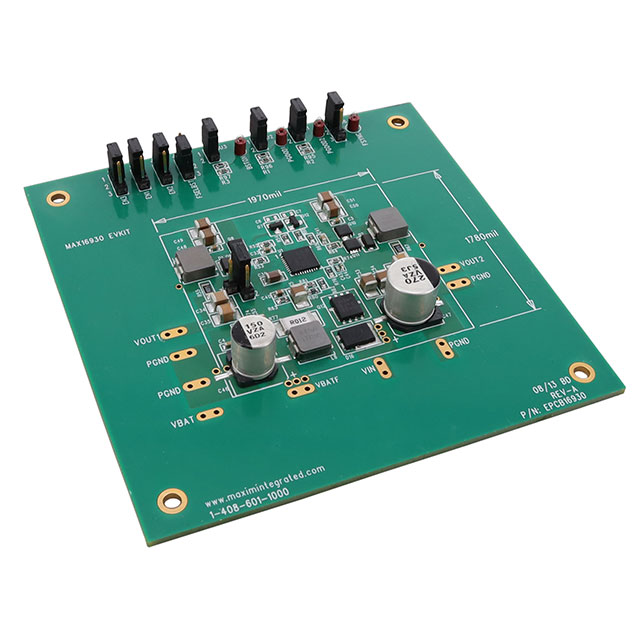

The Analog Devices Inc./Maxim Integrated MAX16930EVKIT- is a fully populated evaluation board designed for the MAX16930 DC/DC buck converter. This evaluation kit facilitates the assessment of the MAX16930's performance in applications requiring efficient step-down voltage conversion. It supports input voltages ranging from 3.5V to 36V and provides two non-isolated outputs, configurable to 3.3V and 5V, each capable of delivering up to 5A. The board is ideal for prototyping and design validation in automotive, industrial, and consumer electronics sectors where robust power management is critical. This evaluation board provides a practical platform for evaluating the switching characteristics and output regulation of the MAX16930 in a real-world scenario.
Additional Information
Series: -RoHS Status: Not applicableManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDownload Free CAD Model:
Technical Details:
| Packaging | Box |
| Voltage - Output | 3.3V, 5V |
| Voltage - Input | 3.5V ~ 36V |
| Current - Output | 5A, 5A |
| Frequency - Switching | - |
| Regulator Topology | Buck |
| Board Type | Fully Populated |
| Utilized IC / Part | MAX16930 |
| Supplied Contents | Board(s) |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | 2, Non-Isolated |
