MAX1531EVKIT
EVAL KIT FOR MAX1530/MAX1531Manufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Quality Control: Learn More

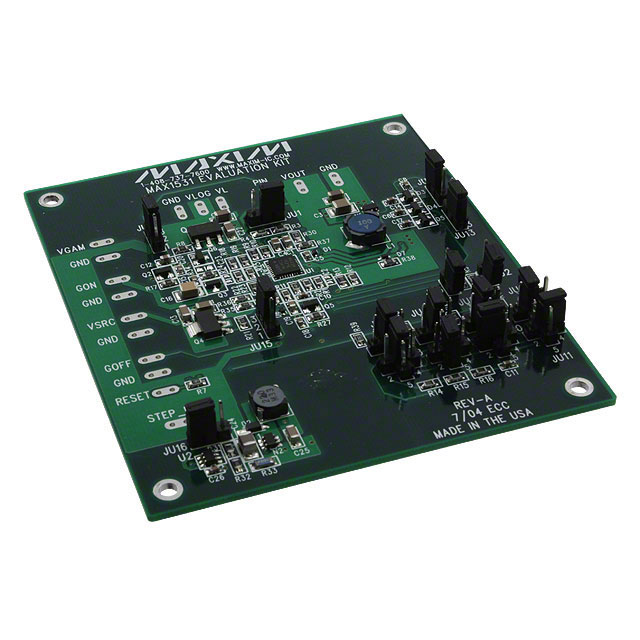

The Analog Devices Inc./Maxim Integrated MAX1531EVKIT is a fully populated evaluation board designed to demonstrate the capabilities of the MAX1531, a special-purpose DC/DC converter for LCD supplies. This evaluation kit allows users to explore the MAX1531's functionality with six non-isolated outputs, supporting various voltage and current configurations including 2.5V, 3.3V, 9.7V, 10V, 25V, and -9V outputs, with individual current capabilities up to 1.5A and down to 25mA. The board supports selectable switching frequencies of 250kHz or 500kHz, enabling optimization for efficiency and component size. Its versatile regulator topology includes boost, buck, and inverting configurations, making it suitable for applications in the automotive and industrial sectors where precise and configurable power solutions are paramount. The kit includes the necessary boards for immediate testing and evaluation of the MAX1531's performance.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Voltage - Output | 2.5V, 3.3V, 9.7V, 10V, 25V, -9V |
| Voltage - Input | 10.5V ~ 24V |
| Current - Output | 1.5A, 500mA, 500mA, 50mA, 50mA, 25mA |
| Frequency - Switching | 250kHz or 500kHz |
| Regulator Topology | Boost, Buck, Inverting |
| Board Type | Fully Populated |
| Utilized IC / Part | MAX1531 |
| Supplied Contents | Board(s) |
| Main Purpose | Special Purpose DC/DC, LCD Supply |
| Outputs and Type | 6, Non-Isolated |
