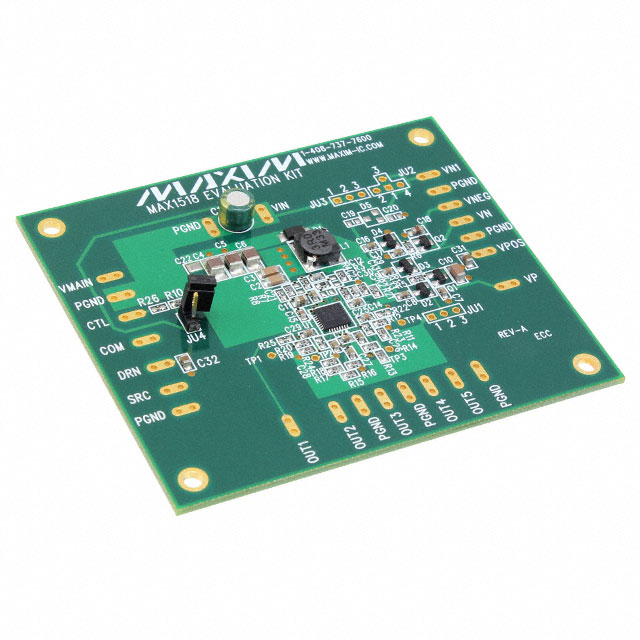

MAX1518EVKIT
KIT EVAL FOR MAX1518Manufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX1518EVKIT is a fully populated evaluation board designed to demonstrate the capabilities of the MAX1518, a special-purpose DC/DC converter for LCD display power. This evaluation kit facilitates the assessment of a 3-output, non-isolated power supply, featuring a boost regulator topology. Key specifications include an input voltage range of 4.5V to 5.5V and output voltages of 13V, 25V, and -8V, with corresponding output currents of 650mA, 15mA, and 10mA respectively. The switching frequency is set at 1.2MHz, enabling efficient power conversion in a compact footprint. This evaluation kit is suitable for applications in display power systems and other specialized power management designs.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDownload Free CAD Model:
Technical Details:
| Packaging | Box |
| Voltage - Output | 13V, 25V, -8V |
| Voltage - Input | 4.5V ~ 5.5V |
| Current - Output | 650mA, 15mA, 10mA |
| Frequency - Switching | 1.2MHz |
| Regulator Topology | Boost |
| Board Type | Fully Populated |
| Utilized IC / Part | MAX1518 |
| Supplied Contents | Board(s) |
| Main Purpose | Special Purpose DC/DC, LCD Supply |
| Outputs and Type | 3, Non-Isolated |
