MAX15066EVKIT+

EVAL KIT MAX15066

Manufacturer: Analog Devices Inc./Maxim Integrated

Categories: DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards

Quality Control: Learn More

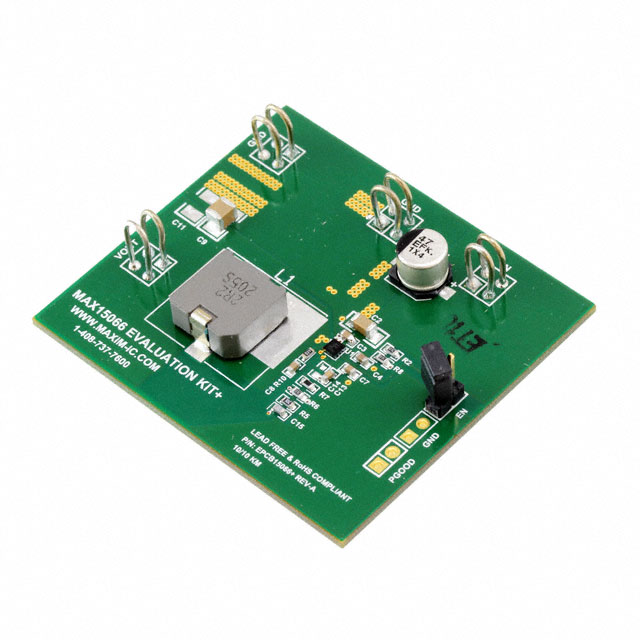

The Analog Devices Inc./Maxim Integrated MAX15066EVKIT- is an evaluation board designed for the MAX15066 DC/DC step-down converter. This fully populated board facilitates the evaluation of the MAX15066, a non-isolated buck regulator capable of delivering up to 4A of output current. Featuring a switching frequency of 500kHz, the evaluation kit supports input voltages ranging from 4.5V to 16V, with a fixed output voltage of 1.8V. This evaluation platform is suitable for applications in the automotive, industrial, and consumer electronics sectors where efficient power conversion is critical. The kit includes the necessary boards for immediate assessment of the MAX15066's performance characteristics.

Additional Information

Series: -RoHS Status: Not applicableManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Box
Technical Details:
PackagingBox
Voltage - Output1.8V
Voltage - Input4.5V ~ 16V
Current - Output4A
Frequency - Switching500kHz
Regulator TopologyBuck
Board TypeFully Populated
Utilized IC / PartMAX15066
Supplied ContentsBoard(s)
Main PurposeDC/DC, Step Down
Outputs and Type1, Non-Isolated
