MAX15041EVKIT+
KIT EVAL MAX15041ETEManufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Quality Control: Learn More

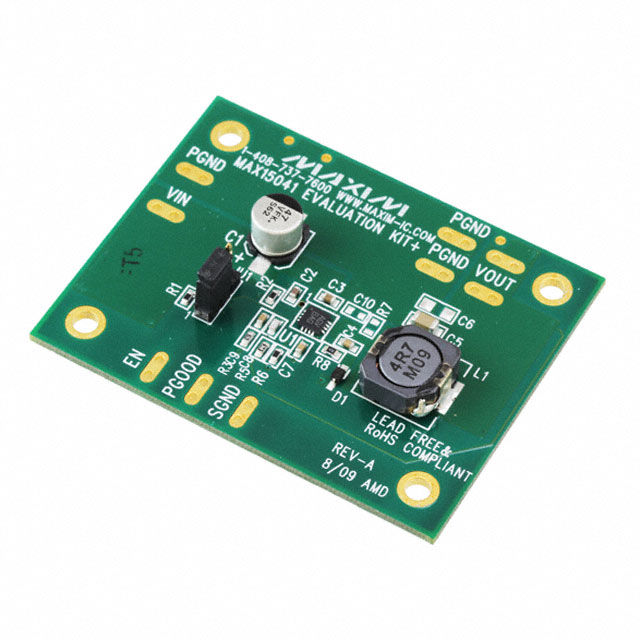

The Analog Devices Inc./Maxim Integrated MAX15041EVKIT- is a fully populated evaluation board designed for the MAX15041 buck regulator. This evaluation kit facilitates the assessment of the MAX15041's performance in step-down DC/DC conversion applications. It supports input voltages ranging from 4.5V to 28V and provides a fixed 3.3V non-isolated output. The board is configured for a 3A output current and operates at a switching frequency of 350kHz. This solution is suitable for power management in various industrial and consumer electronics, including automotive systems, power supplies, and battery-powered devices requiring efficient voltage regulation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Voltage - Output | 3.3V |
| Voltage - Input | 4.5V ~ 28V |
| Current - Output | 3A |
| Frequency - Switching | 350kHz |
| Regulator Topology | Buck |
| Board Type | Fully Populated |
| Utilized IC / Part | MAX15041 |
| Supplied Contents | Board(s) |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | 1, Non-Isolated |
