MAX15039EVKIT+
EVALUATION KIT FOR MAX15039Manufacturer: Analog Devices Inc./Maxim Integrated
Categories: DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Quality Control: Learn More

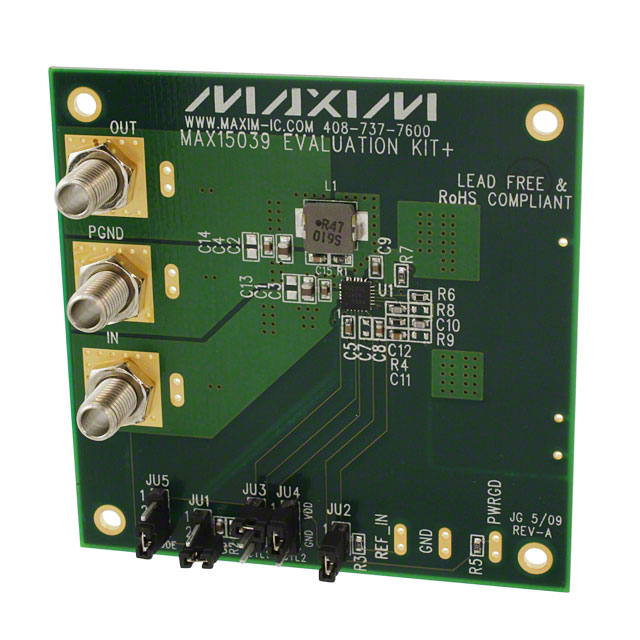

Analog Devices Inc./Maxim Integrated MAX15039EVKIT- is a fully populated evaluation board designed for the MAX15039 step-down DC/DC converter. This evaluation kit facilitates the assessment of the MAX15039's performance in applications requiring efficient power conversion. The board supports a single, non-isolated output with an adjustable output voltage range from 0.6V to 4.5V, driven by an input voltage range of 2.9V to 5.5V. It is engineered to deliver up to 6A of output current, making it suitable for high-performance computing, networking, and telecommunications infrastructure. The evaluation kit provides a practical platform for validating the buck regulator topology's capabilities in various demanding industrial environments.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Voltage - Output | 0.6V ~ 4.5V |
| Voltage - Input | 2.9V ~ 5.5V |
| Current - Output | 6A |
| Frequency - Switching | - |
| Regulator Topology | Buck |
| Board Type | Fully Populated |
| Utilized IC / Part | MAX15039 |
| Supplied Contents | Board(s) |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | 1, Non-Isolated |
