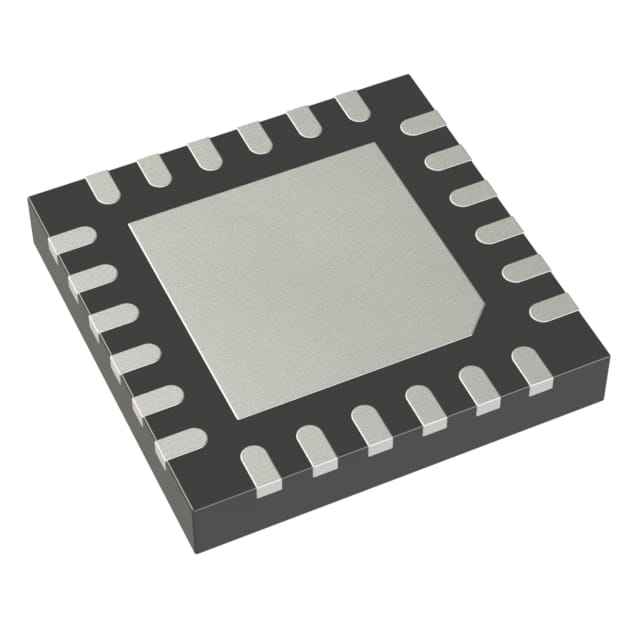

MAX3100ETG+T
IC UART SPI/MICROWIRE 24TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Controllers
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX3100ETG-T is a versatile serial port controller designed for high-performance applications. This component features dual-protocol support, enabling seamless communication via RS232 and RS485 standards. Its integrated SPI and UART interfaces provide flexible connectivity options for system design. Operating within a voltage range of 2.7V to 5.5V and consuming a mere 150µA of supply current, the MAX3100ETG-T is an energy-efficient solution. The component is housed in a compact 24-TQFN (4x4) package, suitable for space-constrained designs. Its operational temperature range spans from -40°C to 85°C, ensuring reliability in demanding environments. This controller is commonly found in industrial automation, networking equipment, and automotive systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-WFQFN Exposed Pad |
| Function | Controller |
| Interface | SPI, UART |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.7V ~ 5.5V |
| Current - Supply | 150µA |
| Protocol | RS232, RS485 |
| Standards | - |
| Supplier Device Package | 24-TQFN (4x4) |
| Programmable | Not Verified |
