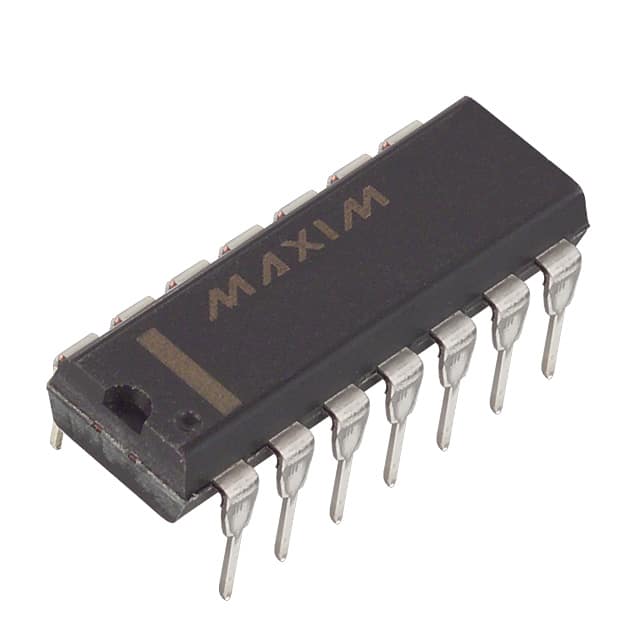

MAX902EPD+
IC COMPARATOR 2 W/LATCH 14DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Comparators
Quality Control: Learn More
Comparator with Latch TTL 14-PDIP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-DIP (0.300"", 7.62mm) |
| Output Type | TTL |
| Mounting Type | Through Hole |
| Number of Elements | 2 |
| Type | with Latch |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Single/Dual (±) | 5V ~ 10V, ±2.5V ~ 5V |
| Supplier Device Package | 14-PDIP |
| Propagation Delay (Max) | - |
| Current - Quiescent (Max) | 8mA, 6mA, 3mA |
| Voltage - Input Offset (Max) | 4mV @ ±5V |
| Current - Input Bias (Max) | 10µA @ ±5V |
| Current - Output (Typ) | - |
| CMRR, PSRR (Typ) | 82.5dB CMRR, 80dB PSRR |
| Hysteresis | - |
