MAX40002ANS+T
IC COMPARATOR 1 W/VOLT REF 4WLPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Comparators
Quality Control: Learn More

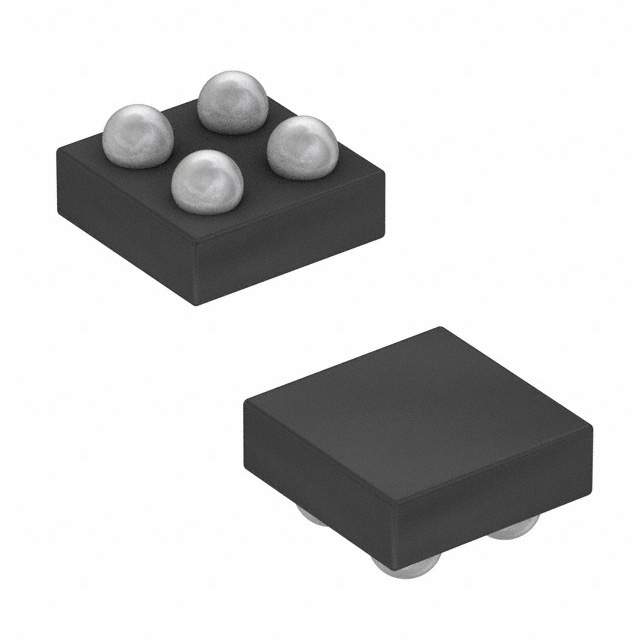

Analog Devices Inc./Maxim Integrated MAX40002ANS-T is a single-element comparator featuring an integrated voltage reference. This component offers an open-drain output and operates from a single supply voltage of 1.7V to 5.5V. Key specifications include a low input bias current of 0.03µA and a quiescent current of 1.1µA (max). The hysteresis is 8mV, with a maximum propagation delay of 9µs (typ). The input offset voltage is a maximum of 10mV at 3.3V. This device is supplied in a 4-WLP (0.73x0.73) package and is available on tape and reel. It is suitable for applications requiring precise voltage comparison and is commonly found in consumer electronics and battery-powered devices.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-XFBGA, WLBGA |
| Output Type | Open-Drain |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Type | with Voltage Reference |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Single/Dual (±) | 1.7V ~ 5.5V |
| Supplier Device Package | 4-WLP (0.73x0.73) |
| Propagation Delay (Max) | 9µs (Typ) |
| Current - Quiescent (Max) | 1.1µA |
| Voltage - Input Offset (Max) | 10mV @ 3.3V |
| Current - Input Bias (Max) | 0.03µA |
| Current - Output (Typ) | - |
| CMRR, PSRR (Typ) | 46dB PSRR (Min) |
| Hysteresis | 8mV |
