MAX9851ETM+
IC CODEC AUDIO STEREO 48TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: CODECS
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX9815ETM- is an 18-bit stereo audio CODEC featuring a serial data interface. This device offers 2 ADCs and 2 DACs with typical dynamic ranges of 82 dB for ADCs and 87.5 dB for DACs, and signal-to-noise ratios of 81.5 dB for ADCs and 88 dB for DACs. The CODEC operates with analog supply voltages from 2.6V to 3.3V and digital supply voltages from 1.7V to 3.3V. It is housed in a 48-TQFN (7x7) package with an exposed pad, suitable for surface mounting. The MAX9815ETM- is designed for applications requiring high-fidelity audio processing, including consumer electronics and professional audio equipment. Its Sigma-Delta architecture ensures excellent audio performance within an operating temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 48-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Type | Stereo Audio |
| Data Interface | Serial |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.6V ~ 3.3V |
| Voltage - Supply, Digital | 1.7V ~ 3.3V |
| Resolution (Bits) | 18 b |
| Dynamic Range, ADCs / DACs (db) Typ | 82 / 87.5 |
| Number of ADCs / DACs | 2 / 2 |
| S/N Ratio, ADCs / DACs (db) Typ | 81.5 / 88 |
| Sigma Delta | Yes |
| Supplier Device Package | 48-TQFN (7x7) |
Request a Quote
Clients Also Buy

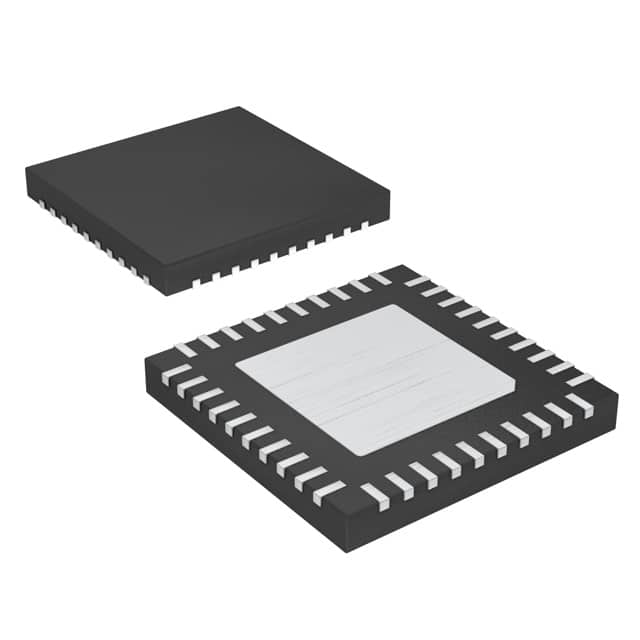

MAX98090BETL+T
