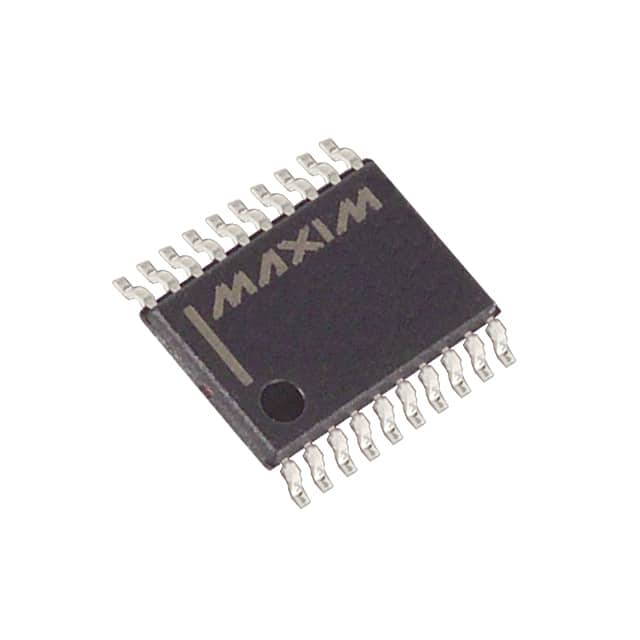

MAX9315EUP+T
IC CLK BUFFER 2:5 1.5GHZ 20TSSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Clock Buffers, Drivers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX9315EUP-T is a versatile 2:5 clock fanout buffer designed for high-speed signal distribution. This component supports differential inputs (HSTL, LVECL, LVPECL) and outputs (LVECL, LVPECL), enabling robust clocking solutions in demanding applications. With a maximum frequency of 1.5 GHz, it excels in environments requiring precise timing and signal integrity. The MAX9315EUP-T is packaged in a 20-TSSOP (0.173", 4.40mm Width) surface-mount configuration, supplied on tape and reel for automated assembly. Operating within a voltage range of 2.25V to 3.8V and an extended temperature range of -40°C to 85°C, this device is suitable for use in telecommunications, networking infrastructure, and high-performance computing systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) |
| Number of Circuits | 1 |
| Mounting Type | Surface Mount |
| Output | LVECL, LVPECL |
| Type | Fanout Buffer (Distribution), Multiplexer, Data |
| Input | HSTL, LVECL, LVPECL |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.25V ~ 3.8V |
| Ratio - Input:Output | 2:5 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 20-TSSOP |
| Frequency - Max | 1.5 GHz |
