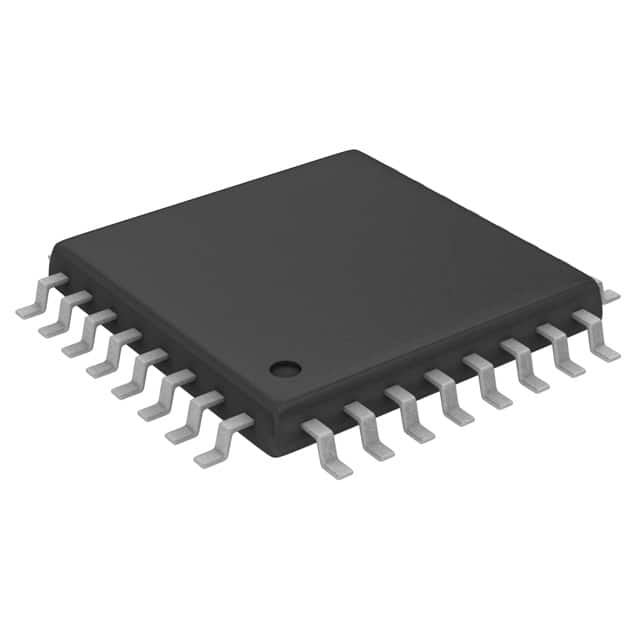

MAX9312ECJ+
IC CLK BUFFER 1:5 3GHZ 32LQFPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Clock Buffers, Drivers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX9312ECJ- is a high-performance clock fanout buffer designed for demanding signal integrity applications. This component facilitates clock distribution with a 1:5 output ratio, capable of operating at frequencies up to 3 GHz. It supports differential inputs including HSTL, LVECL, and LVPECL, and outputs LVECL and LVPECL signals, ensuring compatibility with a wide range of high-speed logic families. The device features two independent circuits, each providing flexible fanout. Operating within a temperature range of -40°C to 85°C, it is suitable for use in telecommunications, networking infrastructure, and high-frequency test and measurement equipment. The component is housed in a 32-LQFP (7x7) surface-mount package and operates from a voltage supply of 2.25V to 3.8V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 32-LQFP |
| Number of Circuits | 2 |
| Mounting Type | Surface Mount |
| Output | LVECL, LVPECL |
| Type | Fanout Buffer (Distribution), Data |
| Input | HSTL, LVECL, LVPECL |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.25V ~ 3.8V |
| Ratio - Input:Output | 1:5 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 32-LQFP (7x7) |
| Frequency - Max | 3 GHz |
