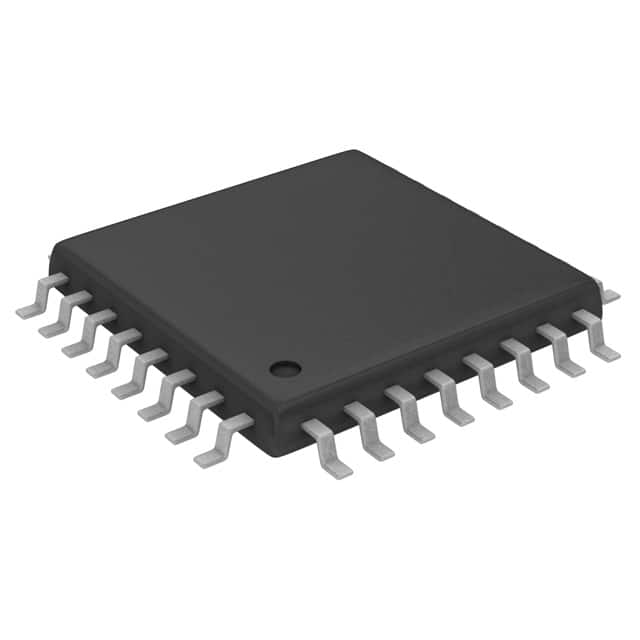

MAX9311ECJ+T
IC CLK BUFFER 2:10 3GHZ 32LQFPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Clock Buffers, Drivers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX9311ECJ-T is a high-speed clock fanout buffer designed for demanding applications. This 2:10 distribution IC features a maximum operating frequency of 3 GHz, making it suitable for high-performance clocking needs. It supports a variety of input logic levels including HSTL, LVECL, and LVPECL, and provides LVECL and LVPECL outputs. The MAX9311ECJ-T operates within a voltage range of 2.25V to 3.8V and is packaged in a 32-LQFP (7x7) surface-mount component. With a differential input and output capability, and a single circuit configuration, this device is ideal for clock distribution in telecommunications, networking, and high-speed computing systems. The component is supplied on a tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-LQFP |
| Number of Circuits | 1 |
| Mounting Type | Surface Mount |
| Output | LVECL, LVPECL |
| Type | Fanout Buffer (Distribution), Multiplexer, Data |
| Input | HSTL, LVECL, LVPECL |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.25V ~ 3.8V |
| Ratio - Input:Output | 2:10 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 32-LQFP (7x7) |
| Frequency - Max | 3 GHz |
