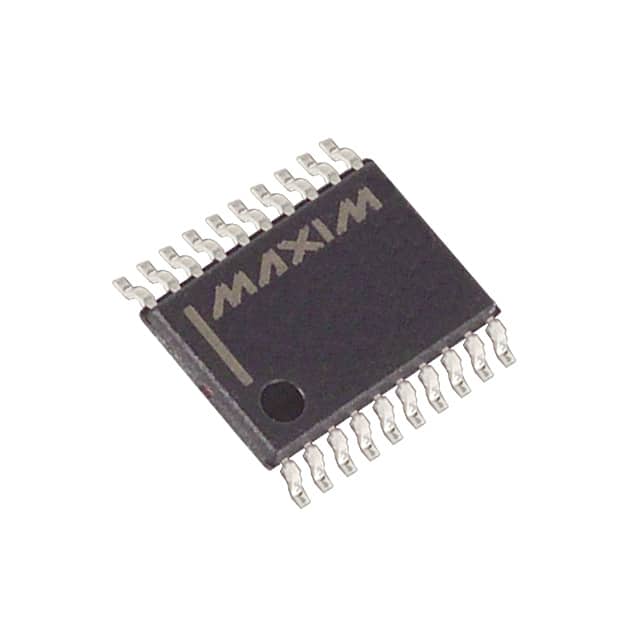

MAX9310AEUP+T
IC CLK BUFFER 2:5 1GHZ 20TSSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Clock Buffers, Drivers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX9310AEUP-T is a high-performance clock fanout buffer and multiplexer. This component features a 2:5 output ratio and operates up to 1 GHz, making it suitable for demanding clock distribution applications. It supports differential inputs, including HSTL and LVPECL, and provides LVDS outputs. The device is packaged in a 20-TSSOP (0.173", 4.40mm Width) and is supplied on tape and reel. With a supply voltage range of 3V to 3.6V and an operating temperature of -40°C to 85°C, the MAX9310AEUP-T is designed for robust performance in various environments. This component finds application in high-speed digital systems, telecommunications infrastructure, and data acquisition systems where precise clock signal integrity is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) |
| Number of Circuits | 1 |
| Mounting Type | Surface Mount |
| Output | LVDS |
| Type | Fanout Buffer (Distribution), Multiplexer |
| Input | HSTL, LVPECL |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3V ~ 3.6V |
| Ratio - Input:Output | 2:5 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 20-TSSOP |
| Frequency - Max | 1 GHz |
