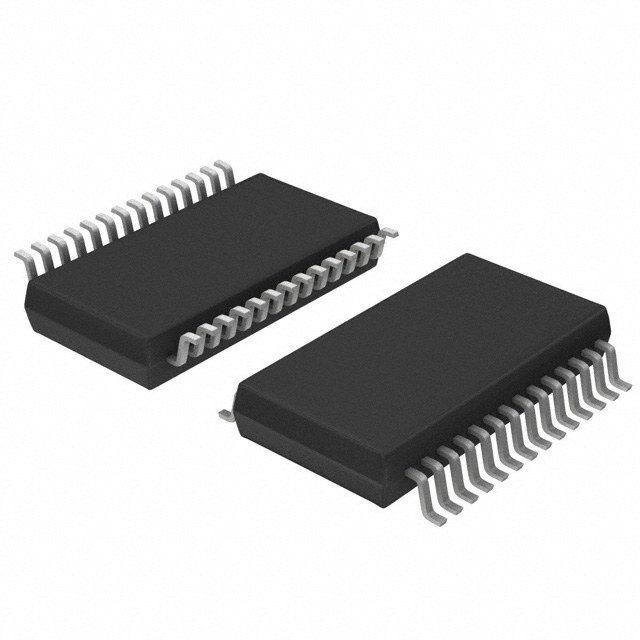

MAX1772EEI+T
IC BAT CHG MULTCHEM 2-4CL 28QSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Battery Chargers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX1772EEI-T is a multi-chemistry battery charger IC designed for 2 to 4 cell battery packs. This surface mount component features a 28-QSOP package and supports a maximum battery pack voltage of 18.2V with a maximum charge current of 4A. The charging current is constant and programmable, offering flexibility in battery management. Operating across a temperature range of -40°C to 85°C, this device is suitable for applications requiring robust power solutions. Its capabilities make it a valuable component for use in industrial, consumer electronics, and automotive sectors where efficient and reliable battery charging is critical. The supply voltage can reach up to 28V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 23 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-SSOP (0.154"", 3.90mm Width) |
| Number of Cells | 2 ~ 4 |
| Mounting Type | Surface Mount |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Battery Chemistry | Multi-Chemistry |
| Supplier Device Package | 28-QSOP |
| Charge Current - Max | 4A |
| Programmable Features | - |
| Fault Protection | - |
| Voltage - Supply (Max) | 28V |
| Battery Pack Voltage | 18.2V (Max) |
| Current - Charging | Constant - Programmable |
