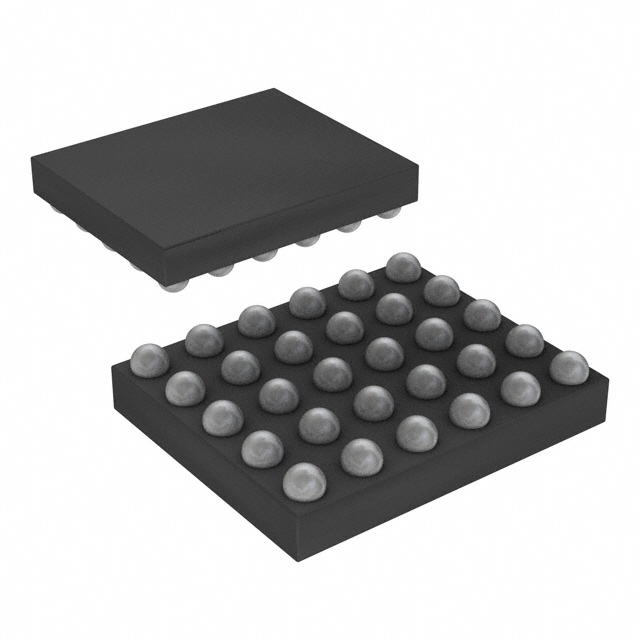

MAX9879ERV+T
IC AMP CLASS D STER 715MW 30UCSPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Audio Amplifiers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX9879ERV-T is a DirectDrive® Class D audio amplifier IC. This 2-channel stereo amplifier delivers 715mW per channel into an 8O load and 58mW per channel into a 16O load. Designed for efficient operation, it features differential inputs, I2C control for volume and mute, and integrated depop circuitry. Additional protection features include short-circuit and thermal protection, along with a shutdown mode. The device operates from a 2.7V to 5.5V supply voltage and is housed in a compact 30-UCSP (2.54x3.05) package, suitable for surface mounting. This component is commonly utilized in portable electronics and mobile devices requiring high-quality audio amplification.
Additional Information
Series: DirectDrive®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Depop, Differential Inputs, I2C, Mute, Short-Circuit and Thermal Protection, Shutdown, Volume Contro |
| Packaging | Tape & Reel (TR) |
| Package / Case | 30-WFBGA, CSPBGA |
| Output Type | 2-Channel (Stereo) with Stereo Headphones |
| Mounting Type | Surface Mount |
| Type | Class D |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2.7V ~ 5.5V |
| Max Output Power x Channels @ Load | 715mW x 2 @ 8Ohm; 58mW x 2 @ 16Ohm |
| Supplier Device Package | 30-UCSP (2.54x3.05) |
