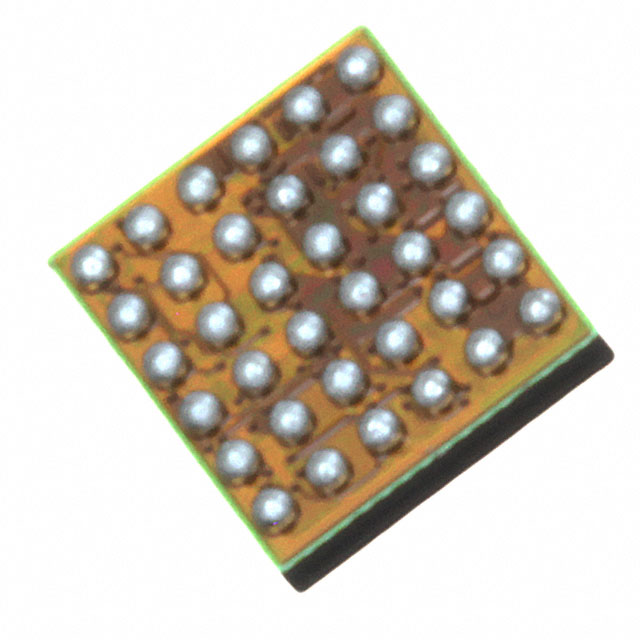

MAX98390EWX+
IC AMP CLASS D MONO 6.5W 36WLPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Audio Amplifiers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX98390EWX- is a highly efficient Class D mono audio amplifier designed for high-fidelity sound reproduction. This device delivers up to 6.5W into an 8-ohm load, making it suitable for demanding audio applications. The compact 36-WLP (2.42x2.61) package, utilizing a WFBGA footprint, facilitates space-constrained designs. Operating within a 1.71V to 1.89V supply voltage range, the MAX98390EWX- is optimized for low-power consumption. Its thermal performance is rated for an operating temperature range of -40°C to 85°C (TA). This amplifier finds application in portable electronics, consumer audio systems, and automotive infotainment where audio quality and power efficiency are paramount.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Strip |
| Package / Case | 36-WFBGA, WLBGA |
| Output Type | 1-Channel (Mono) |
| Mounting Type | Surface Mount |
| Type | Class D |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 1.71V ~ 1.89V |
| Max Output Power x Channels @ Load | 6.5W x 1 @ 8Ohm |
| Supplier Device Package | 36-WLP (2.42x2.61) |
