MAX98360AENL+T
DGTL CLASS D W/1.2V DGTL SUPPLYManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Audio Amplifiers
Quality Control: Learn More

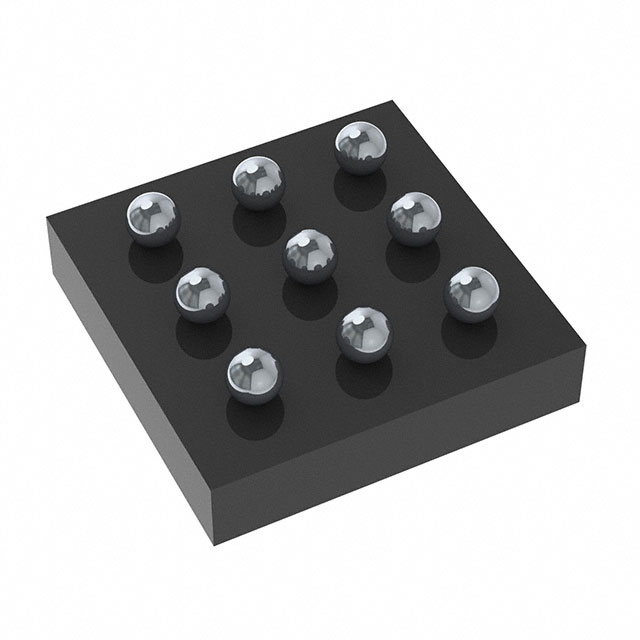

Analog Devices Inc./Maxim Integrated MAX98360AENL-T is a 1-channel (mono) Class D audio amplifier designed for efficient power delivery. This device features a 1.2V digital supply, enabling low-voltage operation. It is housed in a compact 9-WLP (1.35x1.44) package, suitable for space-constrained applications. The MAX98360AENL-T delivers up to 3.2W into a 4-ohm load. Its surface mount configuration and operation within a -40°C to 85°C ambient temperature range make it ideal for integration into portable electronics, consumer audio systems, and automotive applications. The component is supplied on tape and reel (TR) for automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 9-XFBGA, WLBGA |
| Output Type | 1-Channel (Mono) |
| Mounting Type | Surface Mount |
| Type | Class D |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2.5V ~ 5.5V |
| Max Output Power x Channels @ Load | 3.2W x 2 @ 4Ohm |
| Supplier Device Package | 9-WLP (1.35x1.44) |
