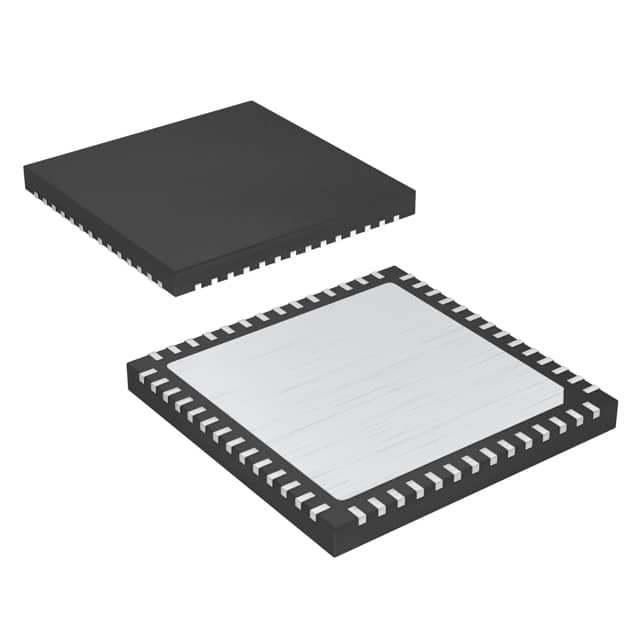

MAX9709ETN+TD
IC AMP D MONO/STEREO 50W 56TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Audio Amplifiers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated's MAX9709ETN-TD is a high-efficiency Class D audio amplifier IC designed for versatile audio applications. This component supports both mono and stereo configurations, delivering up to 50W into a 4-ohm load in mono mode, or 29W per channel into 8-ohm loads in stereo mode. Featuring differential inputs, integrated depop circuitry, and mute functionality, it ensures clean audio signal processing. The MAX9709ETN-TD also includes robust protection mechanisms for short-circuit and thermal events, along with a shutdown pin for power management. Operating within a 10V to 22V supply voltage range, it is suitable for demanding applications across consumer electronics, personal audio, and automotive systems. The device is supplied in a 56-TQFN (8x8) package for surface mounting and is available on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Depop, Differential Inputs, Mute, Short-Circuit and Thermal Protection, Shutdown |
| Packaging | Tape & Reel (TR) |
| Package / Case | 56-WFQFN Exposed Pad |
| Output Type | 1-Channel (Mono) or 2-Channel (Stereo) |
| Mounting Type | Surface Mount |
| Type | Class D |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 10V ~ 22V |
| Max Output Power x Channels @ Load | 50W x 1 @ 4Ohm; 29W x 2 @ 8Ohm |
| Supplier Device Package | 56-TQFN (8x8) |
