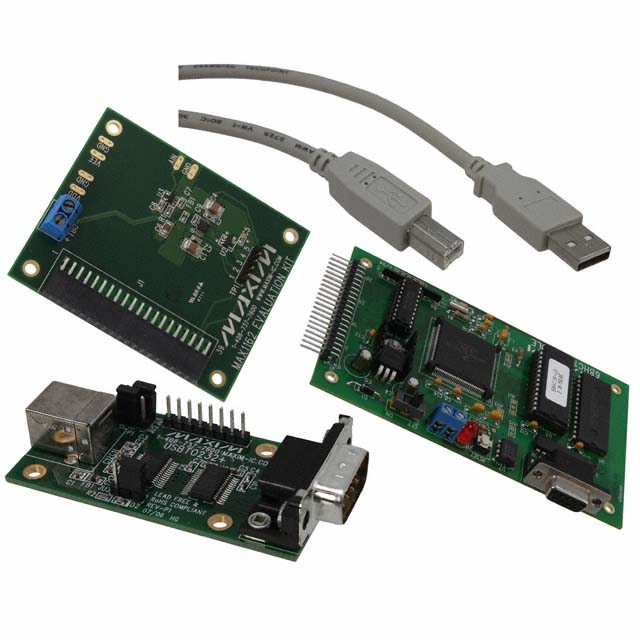

MAX1162EVC16

EVAL KIT FOR MAX1162

Manufacturer: Analog Devices Inc./Maxim Integrated

Categories: Analog to Digital Converters (ADCs) Evaluation Boards

Quality Control: Learn More

Analog Devices Inc./Maxim Integrated's MAX1162EVC16 is an evaluation board designed to demonstrate the capabilities of the MAX1162 and MAX1062 Analog to Digital Converters (ADCs). This board features a 16-bit resolution ADC capable of sampling at up to 200,000 samples per second. The input range is configurable from 0 to VREF, facilitating testing with various signal levels. Data transfer is handled via a serial interface. This evaluation kit is an essential tool for system designers working with high-precision data acquisition in applications such as industrial automation, medical instrumentation, and test and measurement equipment. The kit includes the necessary board(s) for immediate assessment of the MAX1162/MAX1062 performance.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:
Technical Details:
PackagingBulk
Number of Bits16
Data InterfaceSerial
Sampling Rate (Per Second)200k
Utilized IC / PartMAX1162, MAX1062
Supplied ContentsBoard(s)
Number of A/D Converters1
Input Range0 ~ VREF
Power (Typ) @ Conditions-
