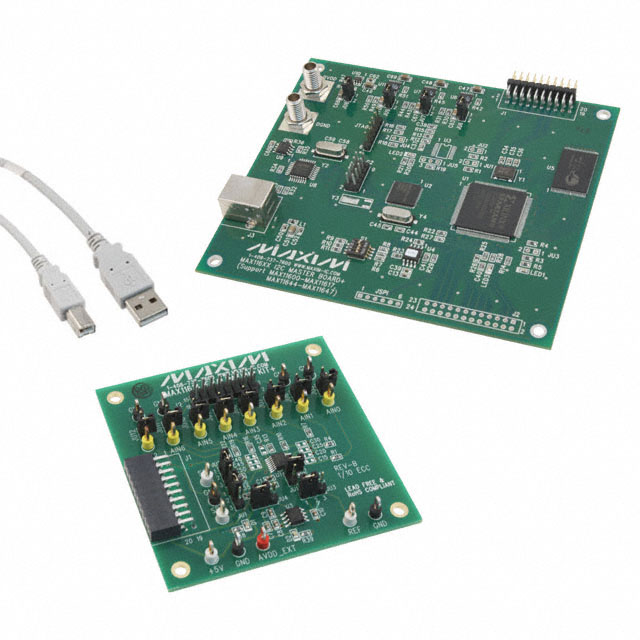

MAX11614EVSYS+
EVALUATION SYSTEM FOR MAX11614Manufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADCs) Evaluation Boards
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX11614EVSYS- is an evaluation system designed to facilitate the testing and characterization of the MAX11614 analog-to-digital converter. This evaluation board provides a platform for exploring the MAX11614's capabilities, which include 8, 10, and 12-bit resolution at a sampling rate of up to 94.4kSPS. The system supports I2C and serial data interfaces for communication. The MAX11614 is a versatile ADC suitable for a range of applications, including industrial automation, medical instrumentation, and consumer electronics where precise analog signal conversion is required. The evaluation system is supplied as a board(s) in box packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Number of Bits | 8, 10, 12 |
| Data Interface | I2C, Serial |
| Sampling Rate (Per Second) | 94.4k |
| Utilized IC / Part | MAX11614 |
| Supplied Contents | Board(s) |
| Number of A/D Converters | 1 |
| Input Range | - |
| Power (Typ) @ Conditions | - |
