MX7828LN+
IC ADC 8BIT HS 28-DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More

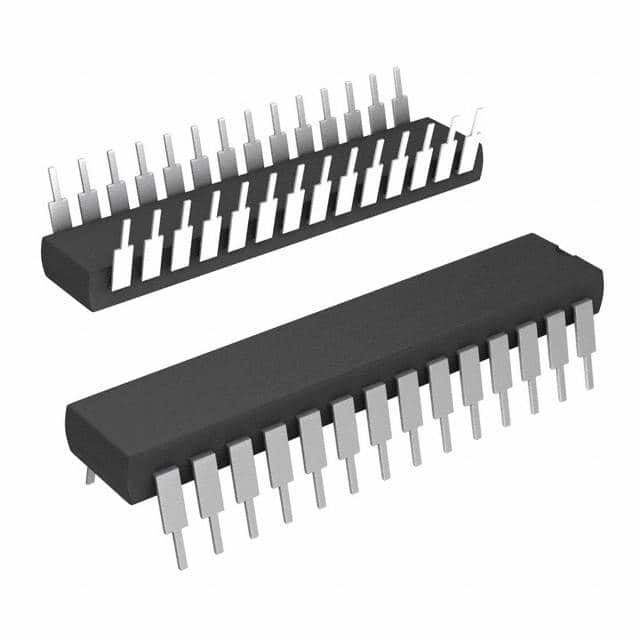

Analog Devices Inc./Maxim Integrated presents the MX7828LN-, an 8-bit successive approximation analog-to-digital converter. This component features an 8-channel multiplexer with sample-and-hold circuitry, enabling single-ended inputs. The device operates with a 5V analog and digital supply voltage and offers a sampling rate of up to 400 kSPS. Its architecture utilizes a flash converter with an external reference. The MX7828LN- is packaged in a 28-PDIP (0.600" width) for through-hole mounting. Key features include selectable addressing and a 1:1 S/H to ADC ratio. This component is suitable for applications in industrial automation, consumer electronics, and data acquisition systems within its 0°C to 70°C operating temperature range.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Selectable Address |
| Packaging | Bulk |
| Package / Case | 28-DIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Number of Bits | 8 |
| Configuration | MUX-S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 400K |
| Input Type | Single Ended |
| Number of Inputs | 8 |
| Supplier Device Package | 28-PDIP |
| Architecture | FLASH |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
