MX7824LN+
IC ADC 8BIT HS 24-DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More

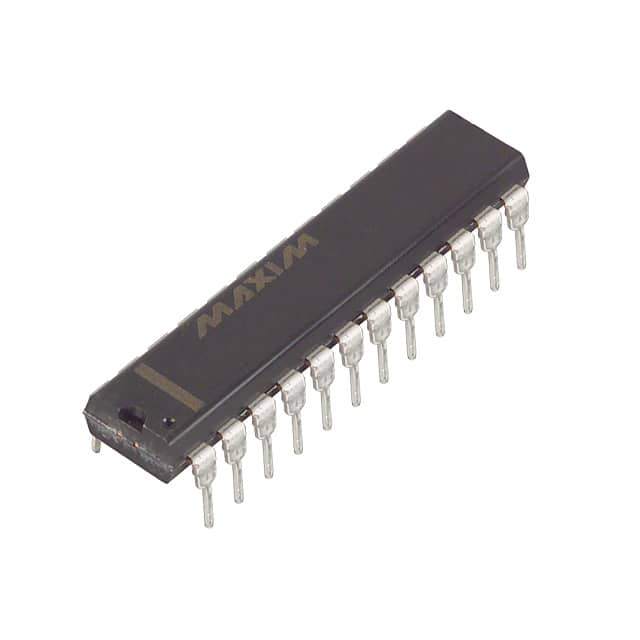

Analog Devices Inc./Maxim Integrated's MX7824LN- is an 8-bit, 4-channel, single-ended analog-to-digital converter featuring a flash architecture. This component offers a sampling rate of up to 400 kSPS and utilizes a parallel data interface for high-speed data transfer. The device incorporates a multiplexer and sample-and-hold amplifier for efficient signal acquisition. Configurable with selectable address lines, the MX7824LN- is supplied in a 24-pin DIP package suitable for through-hole mounting. It operates with analog and digital supply voltages of 5V and is designed for applications across industrial automation, consumer electronics, and data acquisition systems requiring precise and rapid conversion of analog signals.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Selectable Address |
| Packaging | Tube |
| Package / Case | 24-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Number of Bits | 8 |
| Configuration | MUX-S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 400K |
| Input Type | Single Ended |
| Number of Inputs | 4 |
| Supplier Device Package | 24-PDIP |
| Architecture | FLASH |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
