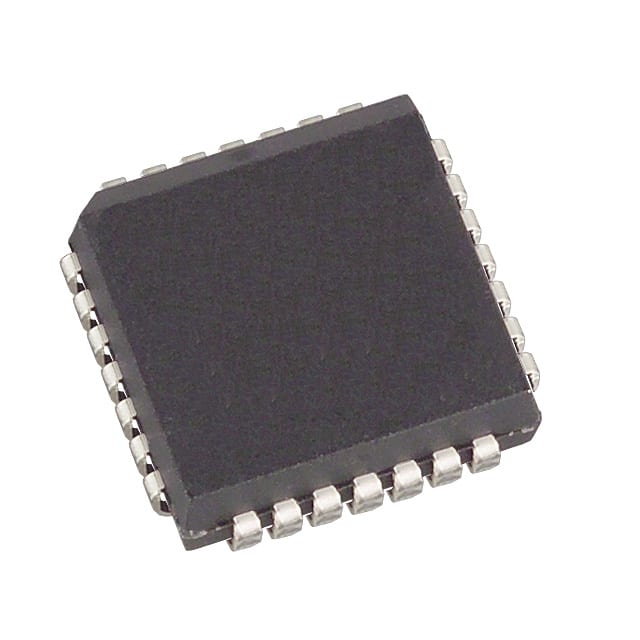

MX7672KP05+
IC ADC 12BIT HS 28-PLCCManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated's MX7672KP05- is a 12-bit analog-to-digital converter featuring a successive approximation register (SAR) architecture. This component offers two single-ended analog inputs and a 1:1 S/H-to-ADC ratio, enabling a sampling rate of up to 308k samples per second. The device utilizes a parallel data interface for output. Its 28-PLCC package is designed for surface mounting, with dimensions of 11.51x11.51mm. Operating from analog and digital supply voltages of 5V, with a range of -10.8V to 13.2V, the MX7672KP05- is specified for an operating temperature range of 0°C to 70°C. This high-speed ADC is suitable for applications in industrial automation, medical equipment, and test and measurement systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 28-LCC (J-Lead) |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 5V, -10.8V ~ 13.2V |
| Voltage - Supply, Digital | 5V, -10.8V ~ 13.2V |
| Sampling Rate (Per Second) | 308k |
| Input Type | Single Ended |
| Number of Inputs | 2 |
| Supplier Device Package | 28-PLCC (11.51x11.51) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
