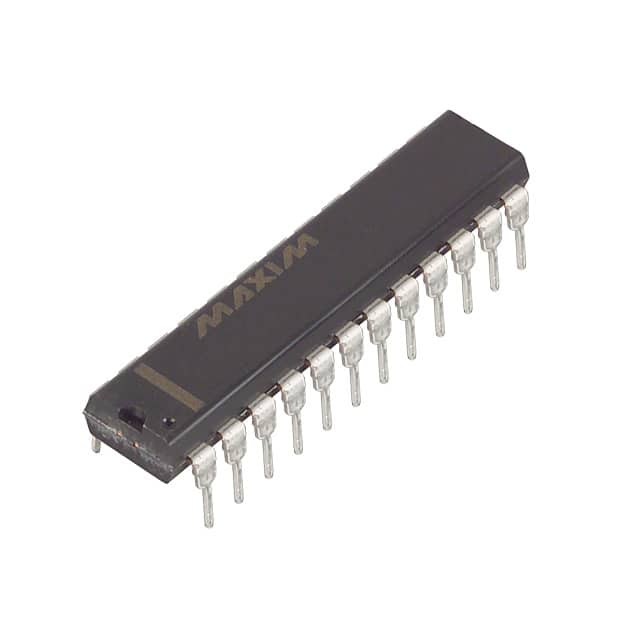

MX7672KN03+
IC ADC 12BIT HS 24-DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MX7672KN03- is a 12-bit Analog-to-Digital Converter (ADC) featuring a Successive Approximation Register (SAR) architecture. This component offers two single-ended analog inputs and a single sample-and-hold amplifier. The digital output is provided via a parallel interface. With a sampling rate of up to 308 kSPS, it is suitable for applications requiring precise analog signal conversion. The MX7672KN03- operates with analog and digital supply voltages of 5V, with a wider range of -10.8V to 13.2V also supported. It utilizes an external reference and is housed in a 24-pin DIP (0.300", 7.62mm) package, designed for through-hole mounting. This ADC finds application in test and measurement equipment, industrial automation, and data acquisition systems where reliable analog-to-digital conversion is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 24-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 5V, -10.8V ~ 13.2V |
| Voltage - Supply, Digital | 5V, -10.8V ~ 13.2V |
| Sampling Rate (Per Second) | 308k |
| Input Type | Single Ended |
| Number of Inputs | 2 |
| Supplier Device Package | 24-PDIP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
