MX7576KCWN+
IC ADC 8BIT MPU COMP 18-SOICManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More

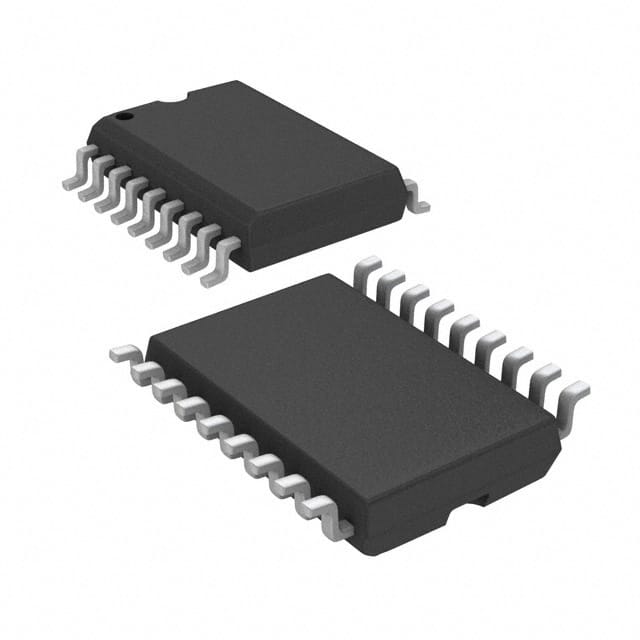

Analog Devices Inc./Maxim Integrated's MX7576KCWN- is an 8-bit, single-ended SAR analog-to-digital converter. This component features a parallel data interface for straightforward MPU compatibility and operates with analog and digital supply voltages of 5V. With a sampling rate of up to 100k samples per second, it offers efficient conversion for various applications. The MX7576KCWN- is housed in an 18-SOIC (0.295", 7.50mm width) package, suitable for surface-mount configurations. Its architecture is a Successive Approximation Register (SAR) type, designed for reliable performance across its 0°C to 70°C operating temperature range. This device finds application in data acquisition systems and industrial control environments.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 18-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 8 |
| Configuration | ADC |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 100k |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 18-SOIC |
| Architecture | SAR |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
Request a Quote
