MX7576JN+
IC ADC 8BIT SAR 18DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More

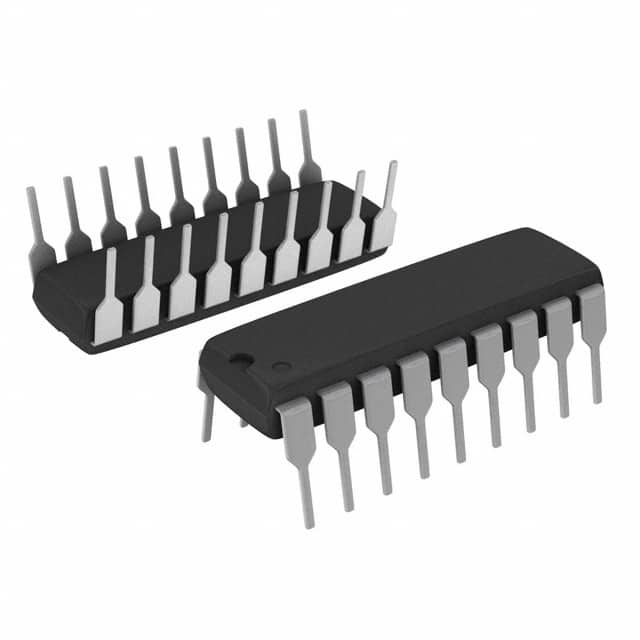

Analog Devices Inc./Maxim Integrated MX7576JN- is an 8-bit successive approximation analog-to-digital converter (ADC). This component features a single-ended input and an external reference type, operating with analog and digital supply voltages of 5V. The MX7576JN- offers a sampling rate of up to 100k samples per second. It is housed in an 18-pin DIP package (0.300" width) suitable for through-hole mounting. This ADC is commonly utilized in applications within the consumer electronics and industrial automation sectors where precise analog signal conversion is required.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: Product Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 18-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Number of Bits | 8 |
| Configuration | ADC |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 100k |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 18-PDIP |
| Architecture | SAR |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
