MX7575JN+
IC ADC 8BIT MPU COMP 18-DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MX7575JN- is an 8-bit, 200kSPS successive approximation analog-to-digital converter (ADC). This monolithic device features a single input, a sample-and-hold amplifier, and a parallel data interface compatible with microprocessor systems. It operates with a single 5V analog supply and a 5V digital supply, utilizing an external voltage reference. The MX7575JN- is housed in an 18-pin PDIP package, suitable for through-hole mounting. Its architecture and performance characteristics make it a suitable component for applications in industrial control, data acquisition, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |

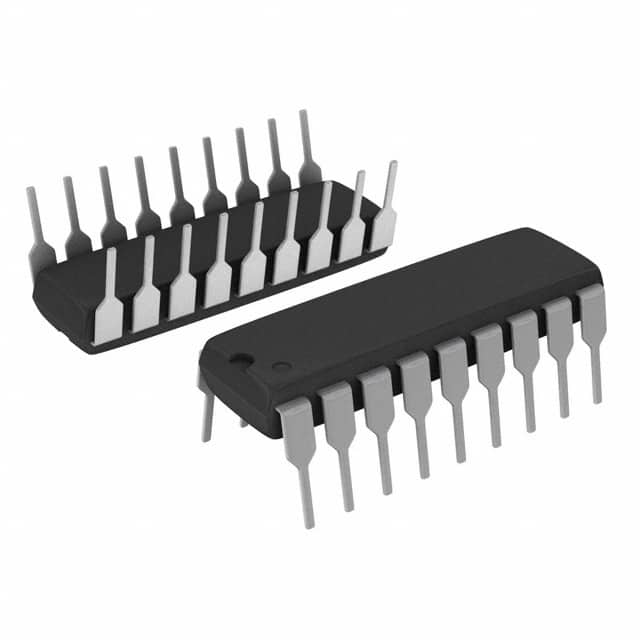

| Package / Case | 18-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Number of Bits | 8 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 200k |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 18-PDIP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
