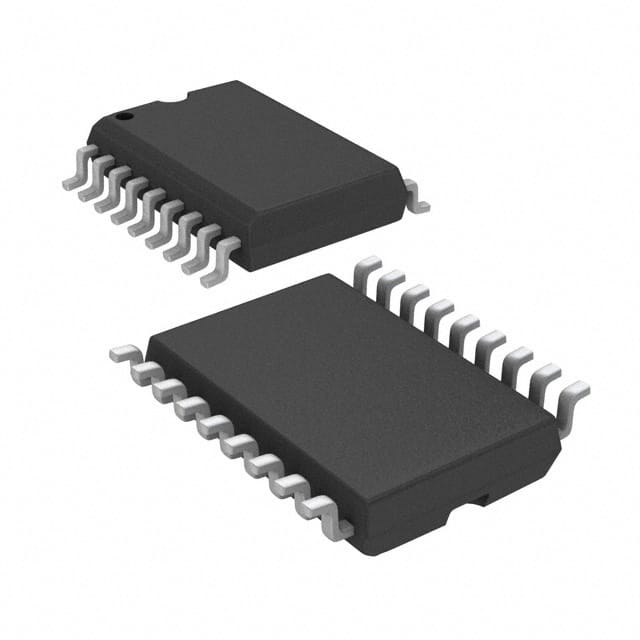

MX7575JCWN+T
IC ADC 8BIT SAR 18SOICManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated's MX7575JCWN-T is an 8-bit Analog-to-Digital Converter (ADC). This SAR (Successive Approximation Register) architecture converter offers a single-ended input and a parallel data interface. It features a 1:1 ratio between Sample-and-Hold (S/H) and ADC functions, utilizing an external reference. The device operates with analog and digital supply voltages of 5V and has a sampling rate of up to 200 kSPS. Packaged in an 18-SOIC (0.295", 7.50mm Width) for surface mounting, this component is suitable for applications within industrial and consumer electronics. The operating temperature range is 0°C to 70°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 18-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 8 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 200k |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 18-SOIC |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
