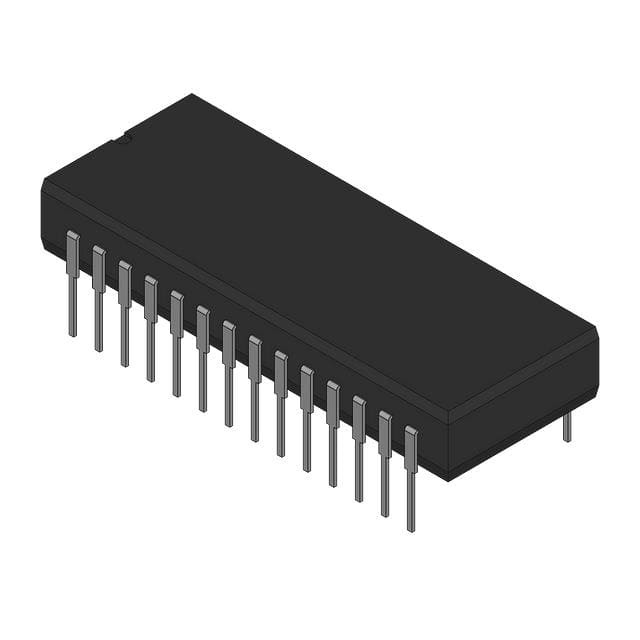

MX574ASQ
MX574 12-BIT ADCManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
12 Bit Analog to Digital Converter 1 Input 1 SAR 28-CERDIP
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 28-CDIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply, Analog | -11.4V ~ -15.75V, 4.75V ~ 5.25V |
| Voltage - Supply, Digital | -11.4V ~ -15.75V, 4.75V ~ 5.25V |
| Sampling Rate (Per Second) | - |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 28-CerDip |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
