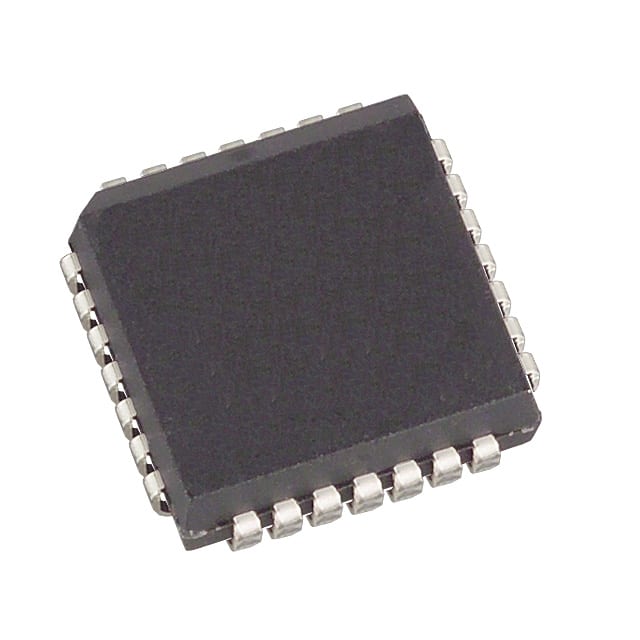

MX574AKEQI+
IC ADC 12BIT SAR 28PLCCManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated's MX574AKEQI- is a 12-bit successive approximation register (SAR) analog-to-digital converter (ADC). This component features a single-ended input and a 1:1 S/H to ADC ratio. The data interface is parallel, and it supports both external and internal voltage references. With a sampling rate of 40kSPS, it operates within an analog supply voltage range of ±11.4V to 16.5V and a digital supply voltage of 5V. The device is housed in a 28-PLCC package, designed for surface mounting, and operates across a temperature range of -40°C to 85°C. This ADC is utilized in industrial automation, medical equipment, and data acquisition systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 28-LCC (J-Lead) |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | ±11.4V ~ 16.5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 40k |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 28-PLCC (11.51x11.51) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
