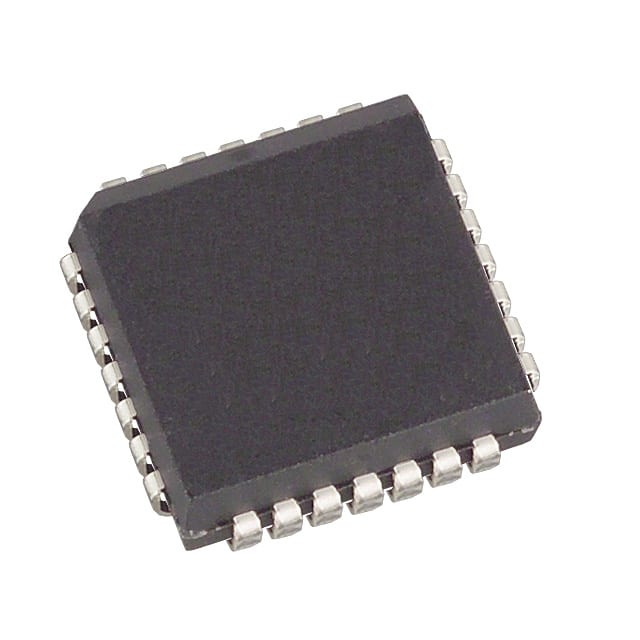

MX574AJP+T
IC ADC 12BIT SAR 28PLCCManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated's MX574AJP-T is a 12-bit Successive Approximation Register (SAR) Analog-to-Digital Converter (ADC). This component features a single-ended analog input and a 1:1 Sample-and-Hold to ADC ratio. It provides a parallel data interface for digital output. The device operates with analog supply voltages ranging from ±11.4V to ±16.5V and a digital supply of 5V. The MX574AJP-T offers both internal and external reference options and can achieve a sampling rate of up to 40kSPS. Packaged in a 28-PLCC (J-Lead) format suitable for surface mounting, this converter is designed operating temperatures from 0°C to 70°C. It finds application in industrial automation and data acquisition systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-LCC (J-Lead) |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | ±11.4V ~ 16.5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 40k |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 28-PLCC (11.51x11.51) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
