MX574AJEPI+

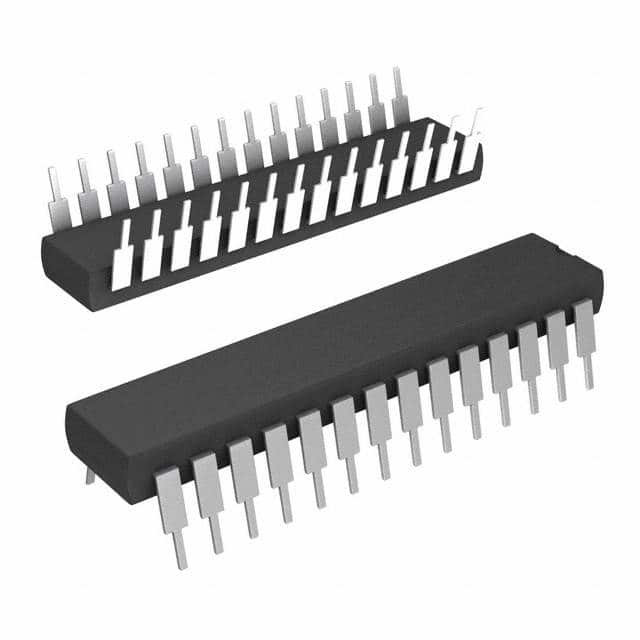

IC ADC 12BIT W/REF 28-DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated's MX574AJEPI- is a 12-bit successive approximation analog-to-digital converter (ADC). This component features a single analog input and a 1:1 sample-and-hold to ADC ratio, operating with an internal or external voltage reference. The device offers a parallel data interface for outputting the 12-bit conversion result. Designed for through-hole mounting in a 28-pin DIP package, the MX574AJEPI- supports a sampling rate of up to 40kSPS. Analog supply voltage ranges from ±11.4V to 16.5V, while the digital supply is 5V. This converter is suitable for applications in industrial automation and data acquisition systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 28-DIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | ±11.4V ~ 16.5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 40k |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 28-PDIP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
