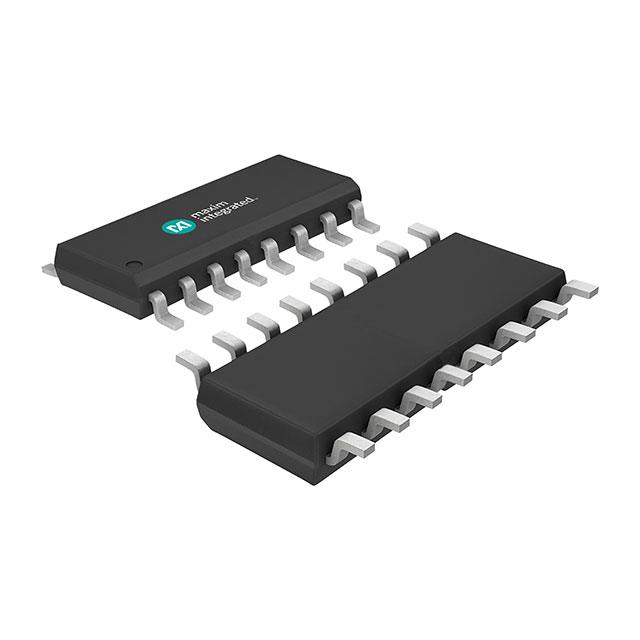

MAX22530AWE+
IC ADC 12BIT SAR 16SOICManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
12 Bit Analog to Digital Converter 4 Input 1 SAR 16-SOIC
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 33 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 16-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Analog | 1.71V ~ 5.5V |
| Voltage - Supply, Digital | 1.71V ~ 5.5V |
| Sampling Rate (Per Second) | 22k |
| Input Type | Single Ended |
| Number of Inputs | 4 |
| Supplier Device Package | 16-SOIC |
| Architecture | SAR |
| Ratio - S/H:ADC | 0:1 |
| Number of A/D Converters | 1 |
Request a Quote
