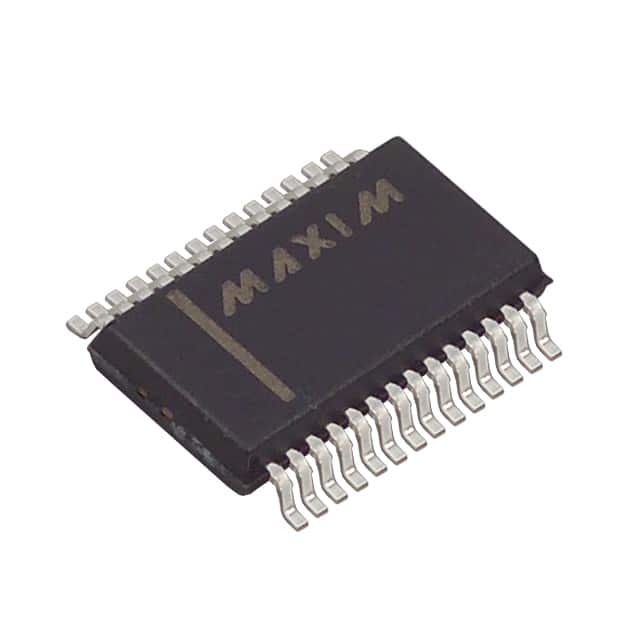

MAX199AEAI
IC ADC 12BIT SAR 28SSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX199AEAI is a 12-bit successive approximation analog-to-digital converter (ADC). This component features an 8-channel input multiplexer and a sample-and-hold circuit, offering a 1:1 ratio for S/H to ADC conversion. The MAX199AEAI utilizes a parallel data interface for outputting 12-bit resolution data. Designed for surface mount applications, it is packaged in a 28-SSOP configuration. This device operates across a temperature range of -40°C to 85°C and supports both external and internal voltage references. It finds application in various industrial and consumer electronics sectors requiring precise analog signal conversion. The analog and digital supply voltage is 5V, and it achieves a sampling rate of up to 100k samples per second.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 28-SSOP (0.209"", 5.30mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | MUX-S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 100k |
| Input Type | Single Ended |
| Number of Inputs | 8 |
| Supplier Device Package | 28-SSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
