MAX192ACPP

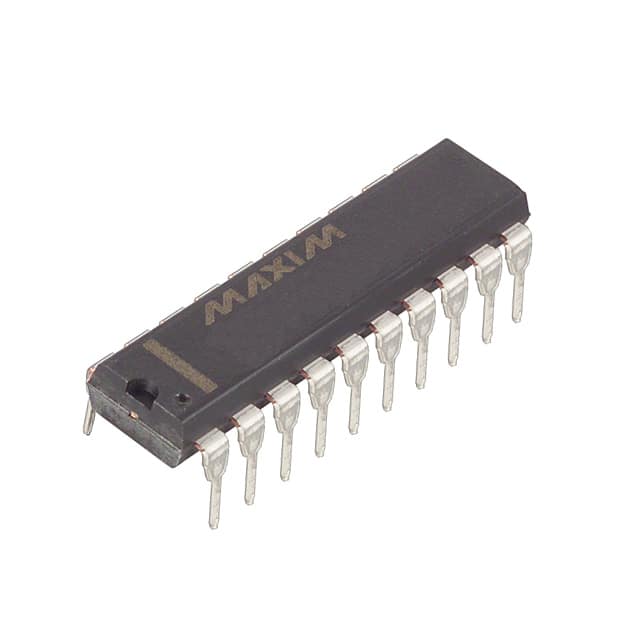

IC ADC 10BIT SAR 20DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX192ACPP is a 10-bit Analog-to-Digital Converter (ADC) featuring a Successive Approximation Register (SAR) architecture. This component offers 4 or 8 selectable input channels, configurable as either single-ended or differential. The MAX192ACPP supports an SPI data interface for efficient communication. Its integrated multiplexer (MUX), sample-and-hold (S/H) circuitry, and ADC are integrated in a 1:1 ratio. It provides both internal and external reference options, operating with analog and digital supply voltages of 5V. The device achieves a sampling rate of up to 133kSPS. Packaged in a 20-PDIP format for through-hole mounting, it operates within a temperature range of 0°C to 70°C. This ADC is commonly found in industrial control, instrumentation, and data acquisition systems.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 20-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Number of Bits | 10 |
| Configuration | MUX-S/H-ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 133k |
| Input Type | Differential, Single Ended |
| Number of Inputs | 4, 8 |
| Supplier Device Package | 20-PDIP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
