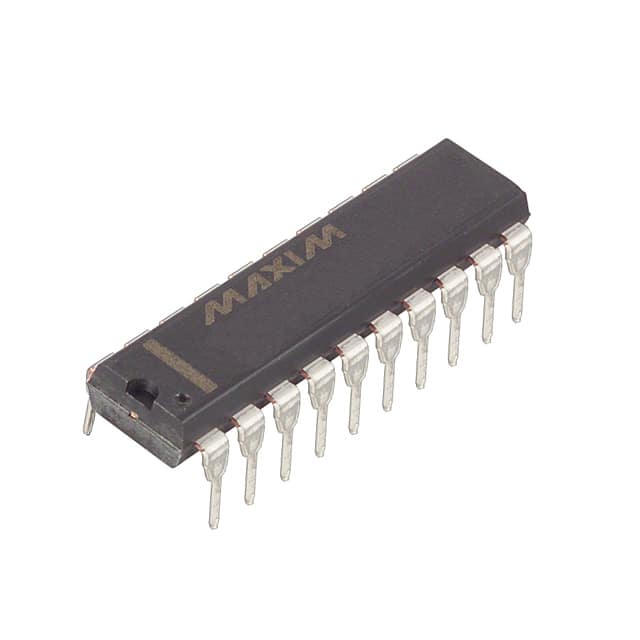

MAX188CCPP
IC ADC 12BIT SAR 20DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX188CCPP is a 12-bit successive approximation analog-to-digital converter (ADC). This component features a 1-channel SAR architecture with selectable 4 or 8 input configurations, supporting both single-ended and differential input types. The MAX188CCPP offers an SPI data interface for digital communication and a sampling rate of up to 133kSPS. It utilizes an external reference voltage and operates with analog and digital supply voltages of ±5V or 5V. Housed in a 20-PDIP package with through-hole mounting, this ADC is suitable for applications in industrial control, data acquisition systems, and test and measurement equipment. The operating temperature range is 0°C to 70°C.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 20-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Number of Bits | 12 |
| Configuration | MUX-S/H-ADC |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | ±5V, 5V |
| Voltage - Supply, Digital | ±5V, 5V |
| Sampling Rate (Per Second) | 133k |
| Input Type | Differential, Single Ended |
| Number of Inputs | 4, 8 |
| Supplier Device Package | 20-PDIP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
