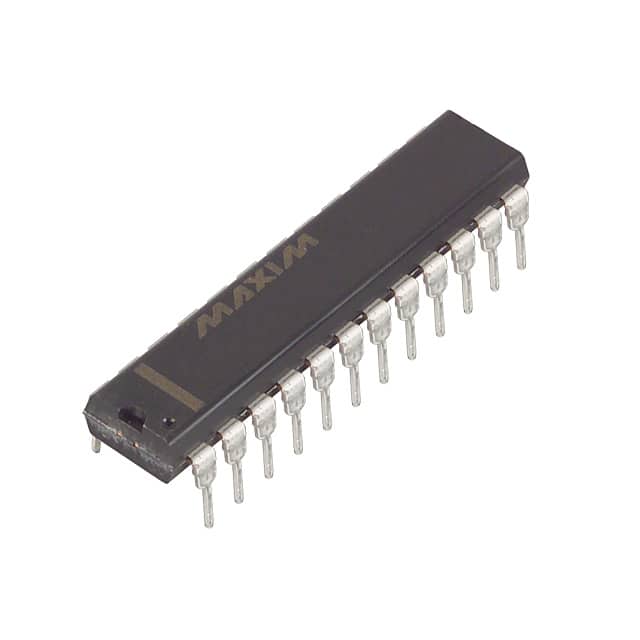

MAX172BENG+
IC ADC 12BIT CMOS 24-DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX172BENG- is a 12-bit successive approximation analog-to-digital converter (ADC). This SAR architecture device features a single-ended input and a 1:1 S/H-to-ADC ratio. It offers a sampling rate of up to 100kSPS. The MAX172BENG- utilizes a parallel data interface and operates with analog and digital supply voltages of 5V, -12V, and -15V. Packaged in a 24-pin DIP (0.300" width) for through-hole mounting, this component is suitable for applications in industrial automation and test and measurement equipment. Its operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 24-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V, -12V, -15V |
| Voltage - Supply, Digital | 5V, -12V, -15V |
| Sampling Rate (Per Second) | 100k |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 24-PDIP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
