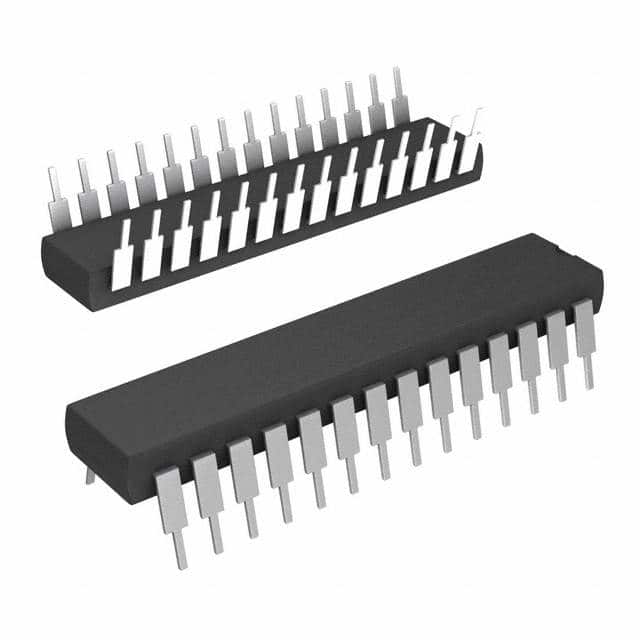

MAX158ACPI+
IC ADC 8BIT FLASH 28DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX158ACPI- is an 8-bit, 400KSPS flash Analog-to-Digital Converter (ADC). This component features 8 single-ended inputs and an internal reference. The MAX158ACPI- utilizes a FLASH architecture and offers selectable address functionality. Its 28-PDIP package facilitates through-hole mounting. Designed for applications requiring efficient conversion, this device operates with analog and digital supply voltages of 5V. It is commonly found in industrial automation, data acquisition systems, and consumer electronics where reliable analog signal processing is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Selectable Address |
| Packaging | Tube |
| Package / Case | 28-DIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Number of Bits | 8 |
| Configuration | MUX-S/H-ADC |
| Data Interface | Parallel |
| Reference Type | Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 400K |
| Input Type | Single Ended |
| Number of Inputs | 8 |
| Supplier Device Package | 28-PDIP |
| Architecture | FLASH |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
