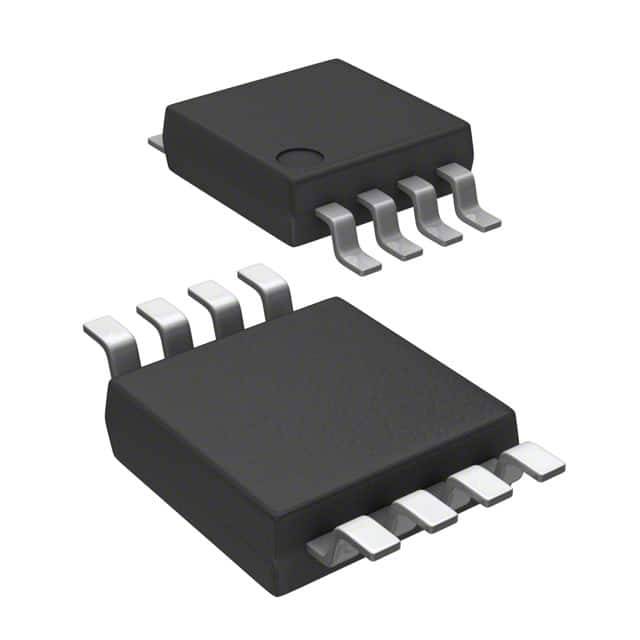

MAX157BCUA+T
IC ADC 10BIT SAR 8UMAXManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX157BCUA-T is a 10-bit successive approximation analog-to-digital converter (ADC). This component features 2 single-ended inputs and a multiplexer with sample-and-hold circuitry. The SAR architecture enables a sampling rate of up to 108kSPS. Data is transmitted via an SPI interface. The device operates from a single 2.7V to 5.25V analog and digital supply. It is housed in an 8-pin uMAX/uSOP package suitable for surface mounting, specifically the 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) footprint. The MAX157BCUA-T is typically employed in applications within the industrial and consumer electronics sectors. This component is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 10 |
| Configuration | MUX-S/H-ADC |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Sampling Rate (Per Second) | 108k |
| Input Type | Single Ended |
| Number of Inputs | 2 |
| Supplier Device Package | 8-uMAX/uSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
