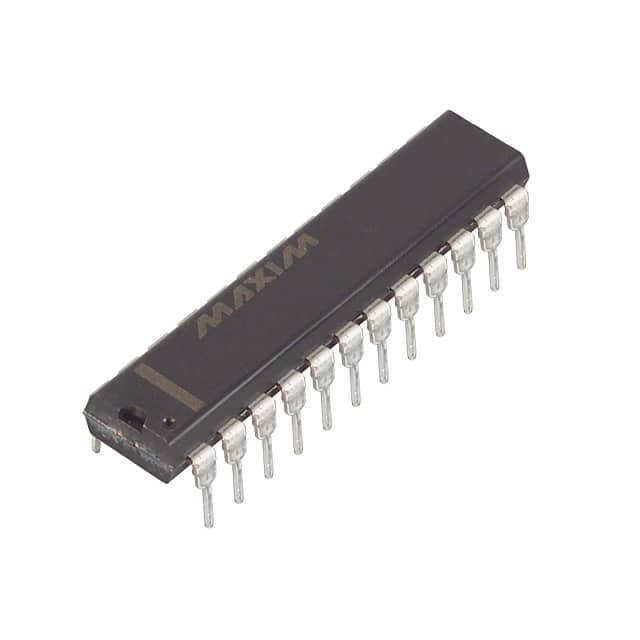

MAX156BCNG+
IC ADC 8BIT SAR 24DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
8 Bit Analog to Digital Converter 2, 4 Input 1 SAR 24-PDIP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Selectable Address, Simultaneous Sampling |
| Packaging | Tube |
| Package / Case | 24-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Number of Bits | 8 |
| Configuration | S/H-MUX-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | ±5V, 5V |
| Voltage - Supply, Digital | ±5V, 5V |
| Sampling Rate (Per Second) | 250k |
| Input Type | Differential, Single Ended |
| Number of Inputs | 2, 4 |
| Supplier Device Package | 24-PDIP |
| Architecture | SAR |
| Ratio - S/H:ADC | 4:1 |
| Number of A/D Converters | 1 |
Request a Quote
