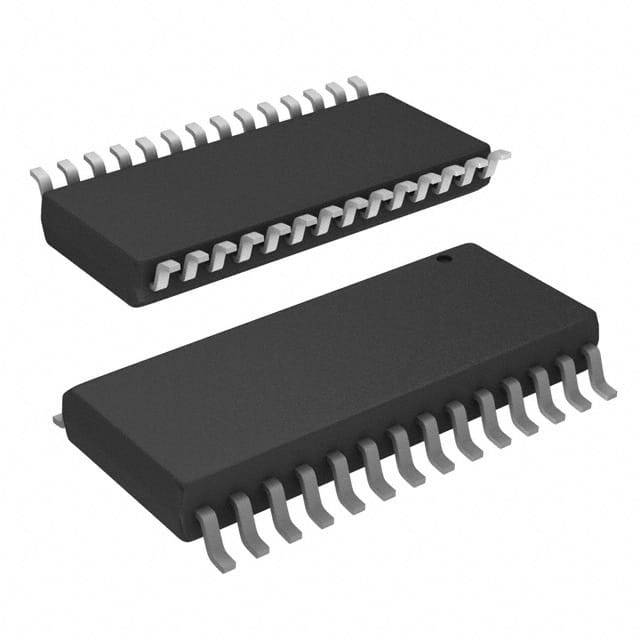

MAX156AEWI+
IC ADC 8BIT 4CH T/H&REF 28-SOICManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX156AEWI- is an 8-bit SAR Analog to Digital Converter featuring a 4:1 ratio of Sample-and-Hold (S/H) to ADC channels. This 28-SOIC surface-mount component supports 2 or 4 input channels, configurable as differential or single-ended. It offers selectable address and simultaneous sampling capabilities, with both internal and external reference options. The device operates across a temperature range of -40°C to 85°C and supports analog and digital supply voltages of ±5V or 5V. Its parallel data interface facilitates efficient data transfer. This component finds application in industrial automation, test and measurement equipment, and medical instrumentation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Selectable Address, Simultaneous Sampling |
| Packaging | Bulk |
| Package / Case | 28-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 8 |
| Configuration | S/H-MUX-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | ±5V, 5V |
| Voltage - Supply, Digital | ±5V, 5V |
| Sampling Rate (Per Second) | 250k |
| Input Type | Differential, Single Ended |
| Number of Inputs | 2, 4 |
| Supplier Device Package | 28-SOIC |
| Architecture | SAR |
| Ratio - S/H:ADC | 4:1 |
| Number of A/D Converters | 1 |
