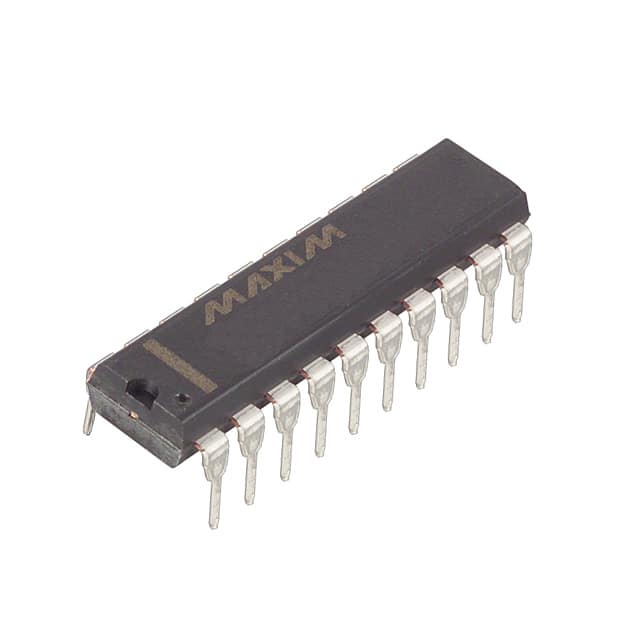

MAX152CPP+
IC ADC 8BIT 1UA PWR-DWN 20-DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX152CPP- is an 8-bit, single-channel, 400kSPS Analog to Digital Converter (ADC) featuring a FLASH architecture and Sample-and-Hold (S/H) capability. This through-hole component utilizes a parallel data interface and requires an external reference. The device operates from a single supply voltage range of ±3V to 3.6V for both analog and digital sections. Its low power consumption, including a 1µA power-down mode, makes it suitable for battery-operated applications. The 20-PDIP package is designed for ease of integration into existing PCB layouts. This ADC is commonly found in industrial control systems, portable instrumentation, and data acquisition modules.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 20-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Number of Bits | 8 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | ±3V ~ 3.6V |
| Voltage - Supply, Digital | ±3V ~ 3.6V |
| Sampling Rate (Per Second) | 400K |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 20-PDIP |
| Architecture | FLASH |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
