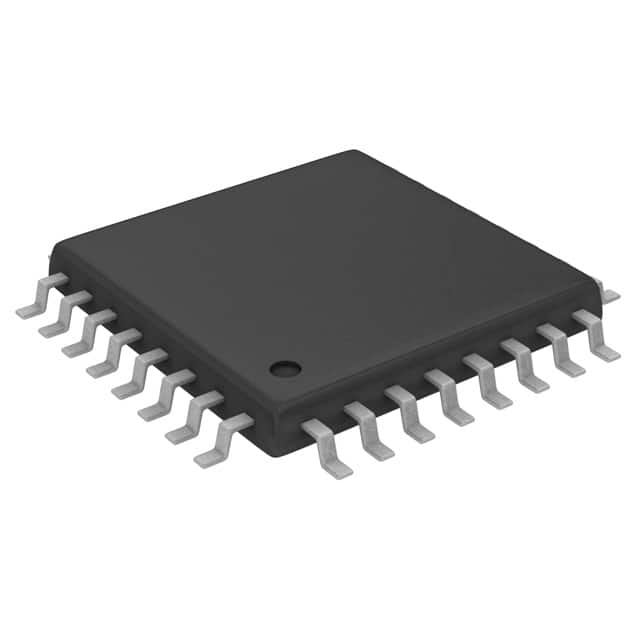

MAX1444EHJ+T
IC ADC 10BIT PIPELINED 32TQFPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX1444EHJ-T is a 10-bit pipelined Analog-to-Digital Converter (ADC) featuring a single input and a pipelined architecture. This component offers a high sampling rate of 40Msps, making it suitable for demanding applications. It supports both differential and single-ended input types and can utilize either external or internal references. The device operates within a voltage range of 2.7V to 3.6V for both analog and digital supplies. Packaged in a 32-TQFP (5x5) surface-mount format, this component is supplied on tape and reel. Its robust design finds application in sectors such as industrial automation, communications, and test and measurement equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-TQFP |
| Mounting Type | Surface Mount |
| Number of Bits | 10 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| Sampling Rate (Per Second) | 40M |
| Input Type | Differential, Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 32-TQFP (5x5) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
