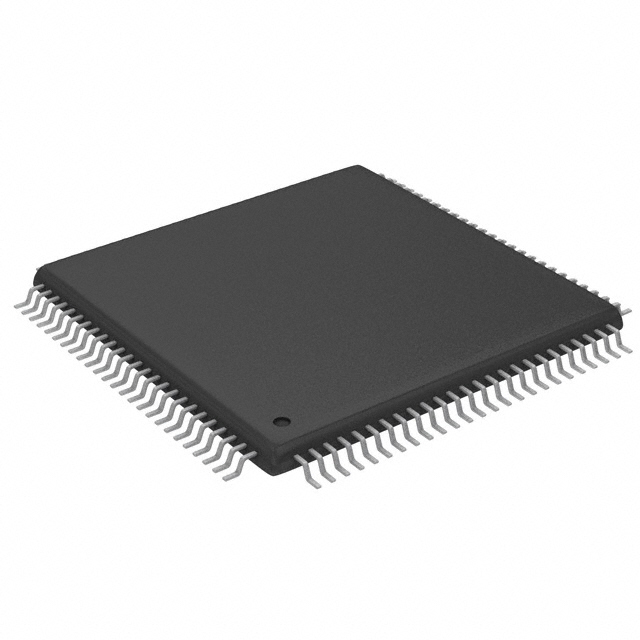

MAX1437ECQ+TD
IC ADC 12BIT PIPELINED 100TQFPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX1437ECQ-TD is a 12-bit pipelined analog-to-digital converter. This component features 8 differential inputs and supports simultaneous sampling. The device operates with an analog sampling rate of 50MSPS and integrates 8 internal analog-to-digital converters. Data transfer is handled via a serial LVDS interface. The MAX1437ECQ-TD offers both internal and external reference options. It is housed in a 100-TQFP-EP (14x14) package suitable for surface mounting and operates within a temperature range of -40°C to 85°C. This component finds application in industries such as telecommunications and test and measurement equipment requiring high-speed data acquisition.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 100-TQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Serial |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Sampling Rate (Per Second) | 50M |
| Input Type | Differential |
| Number of Inputs | 8 |
| Supplier Device Package | 100-TQFP-EP (14x14) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 8 |
