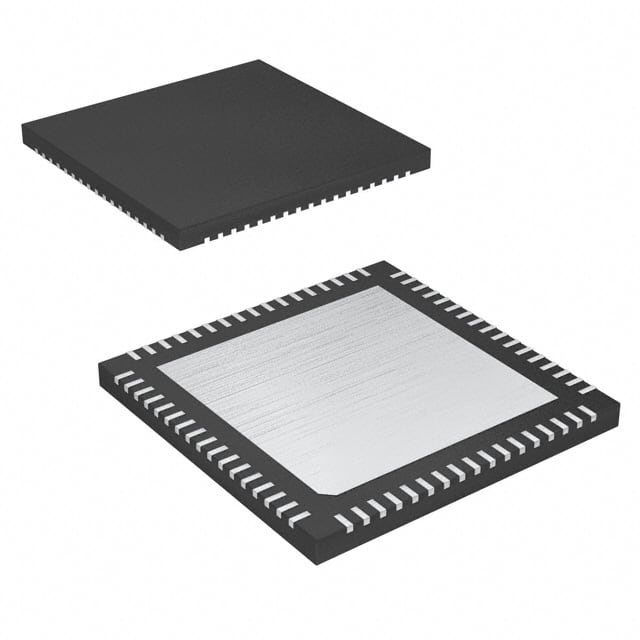

MAX1437BETK+T
IC ADC 12BIT PIPELINED 68TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX1437BETK-T is a 12-bit, 8-channel pipelined analog-to-digital converter. This device features simultaneous sampling with an 8:1 S/H to ADC ratio, enabling high-performance data acquisition. The pipelined architecture achieves a sampling rate of 50MSPS per channel. It offers both external and internal reference options and supports differential input types. Data is transmitted serially via an LVDS interface. The MAX1437BETK-T is housed in a 68-TQFN (10x10) exposed pad package, suitable for surface mounting. Its operating temperature range is -40°C to 85°C, with analog and digital supply voltages between 1.7V and 1.9V. This component is utilized in applications such as medical imaging and high-speed communications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 68-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Serial |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Sampling Rate (Per Second) | 50M |
| Input Type | Differential |
| Number of Inputs | 8 |
| Supplier Device Package | 68-TQFN (10x10) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 8 |
