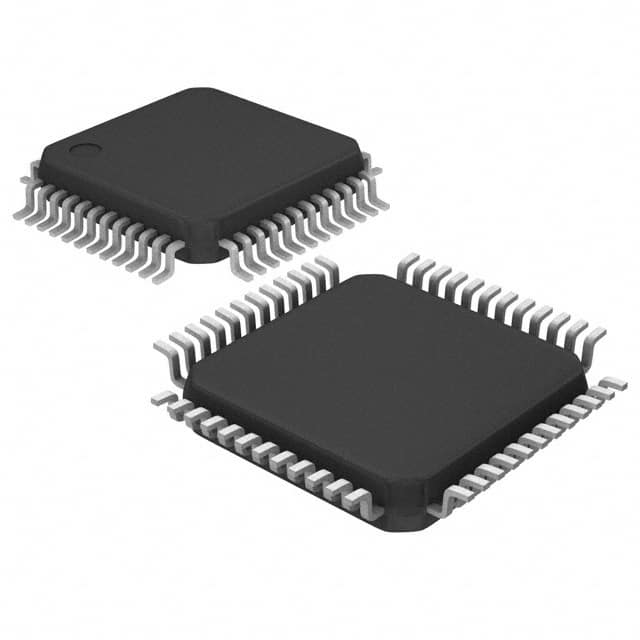

MAX1422ECM+TD
IC ADC 12BIT PIPELINED 48LQFPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated's MAX1422ECM-TD is a 12-bit pipelined Analog-to-Digital Converter (ADC). This component features a single input, supporting both differential and single-ended configurations. The architecture employs a Sample-and-Hold (S/H) circuit integrated with the ADC, operating at a sampling rate of up to 20 MSPS. Data is output via a parallel interface. The device offers both internal and external reference types and is packaged in a 48-LQFP (7x7) surface-mount configuration, supplied on tape and reel. Analog supply voltage ranges from 3.138V to 3.465V, with digital supply voltage between 2.7V and 3.63V. The operating temperature is specified from -40°C to 85°C. This component is suitable for applications in high-speed data acquisition systems, medical imaging, and industrial control.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-LQFP |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 3.138V ~ 3.465V |
| Voltage - Supply, Digital | 2.7V ~ 3.63V |
| Sampling Rate (Per Second) | 20M |
| Input Type | Differential, Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 48-LQFP (7x7) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
