MAX1320ECM+T

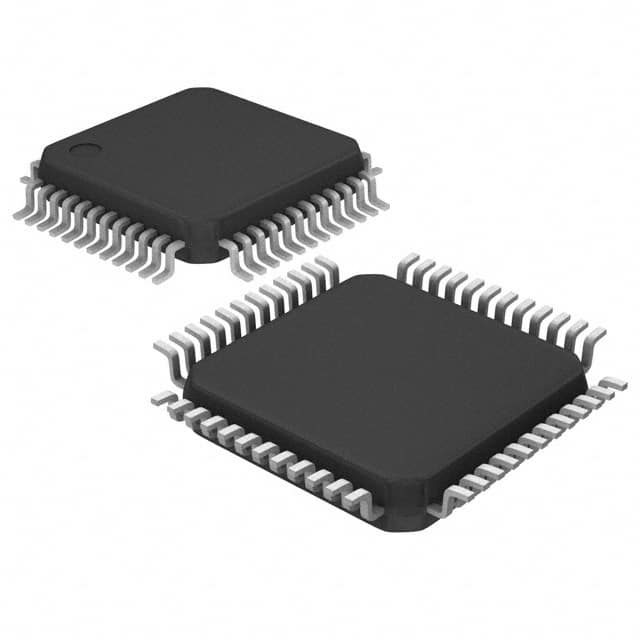

IC ADC 14BIT SAR 48LQFPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated's MAX1320ECM-T is a 14-bit, 8-channel, 48-lead LQFP SAR Analog-to-Digital Converter. This component features a single-chip simultaneous sampling architecture with an 8:1 MUX-S/H-ADC configuration. It supports both external and internal voltage references, with analog supply voltage at 5V and digital supply ranging from 2.7V to 5.25V. The device offers a parallel data interface and a sampling rate of up to 250kSPS. Designed for surface mount applications and operating within a temperature range of -40°C to 85°C, the MAX1320ECM-T is suitable for demanding applications in industrial automation, medical instrumentation, and test and measurement systems. The component is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 34 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-LQFP |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | MUX-S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Sampling Rate (Per Second) | 250k |
| Input Type | Single Ended |
| Number of Inputs | 8 |
| Supplier Device Package | 48-LQFP (7x7) |
| Architecture | SAR |
| Ratio - S/H:ADC | 8:1 |
| Number of A/D Converters | 1 |
