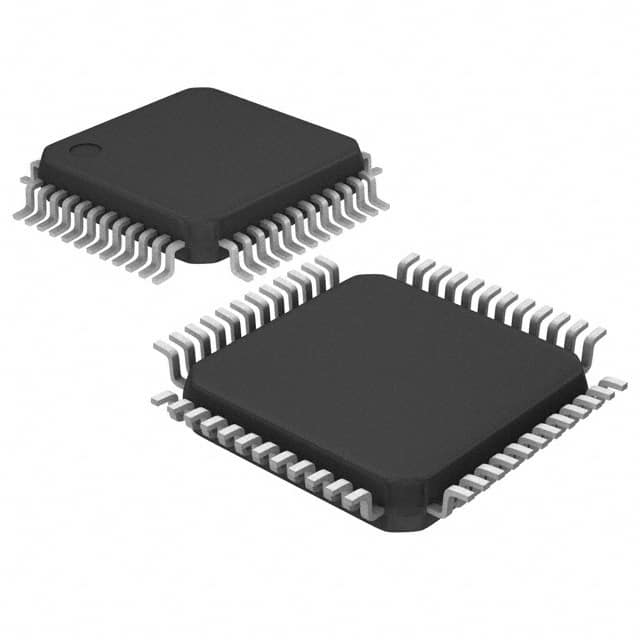

MAX1316ECM+T
IC ADC 14BIT SAR 48LQFPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated's MAX1316ECM-T is a 14-bit Analog to Digital Converter (ADC) featuring a Successive Approximation Register (SAR) architecture. This component offers 8 single-ended inputs and a sampling rate of up to 250kSPS. With its 8:1 multiplexer to sample-and-hold ratio, it is suitable for applications requiring precise data acquisition. The device supports both external and internal voltage references and operates with analog supply voltages of 5V and digital supply voltages ranging from 2.7V to 5.25V. The MAX1316ECM-T is packaged in a 48-LQFP (7x7) surface-mount format and operates within a temperature range of -40°C to 85°C. It finds application in industrial automation, instrumentation, and medical equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 34 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-LQFP |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | MUX-S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Sampling Rate (Per Second) | 250k |
| Input Type | Single Ended |
| Number of Inputs | 8 |
| Supplier Device Package | 48-LQFP (7x7) |
| Architecture | SAR |
| Ratio - S/H:ADC | 8:1 |
| Number of A/D Converters | 1 |
