MAX1300BEUG+T

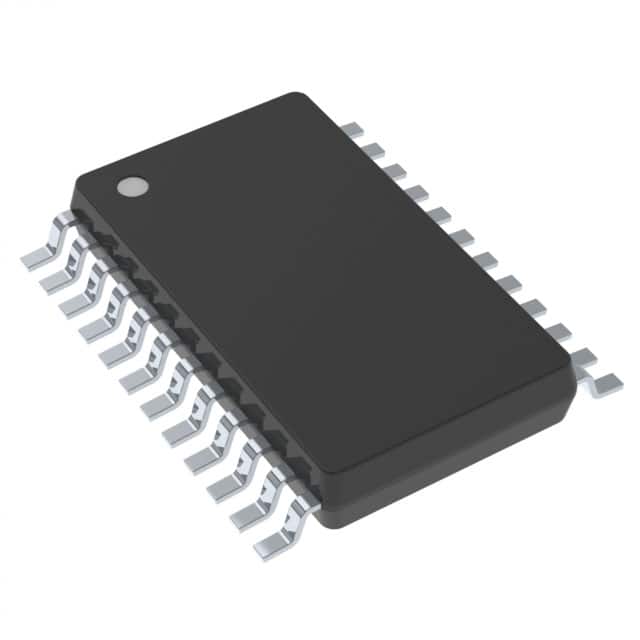

IC ADC 16BIT SAR 24TSSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX1300BEUG-T is a 16-bit Successive Approximation Register (SAR) Analog-to-Digital Converter (ADC). This device features a 4 or 8-channel multiplexer and an internal Sample-and-Hold (S/H) circuit. It supports both differential and single-ended input types and offers a programmable gain amplifier (PGA). The MAX1300BEUG-T utilizes an SPI data interface for communication and operates with analog and digital supply voltages of 5V. Its sampling rate is up to 115kSPS. The component is housed in a 24-TSSOP package and is designed for surface mounting. This ADC is suitable for applications in industrial automation, data acquisition systems, and test and measurement equipment. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 34 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | PGA |
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | MUX-PGA-S/H-ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 115k |
| Input Type | Differential, Single Ended |
| Number of Inputs | 4, 8 |
| Supplier Device Package | 24-TSSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
